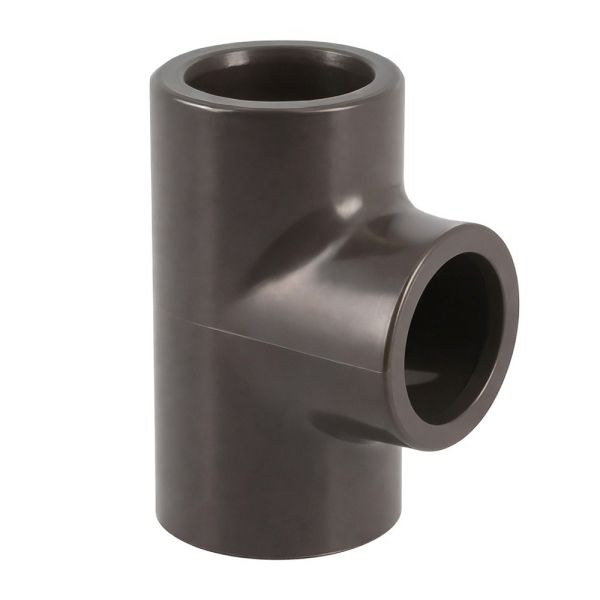

Durapipe HTA Tee 90°

• Manufacturer: Durapipe
• Material: Chlorinated polyvinyl chloride (CPVC)
• Application: Hot and cold water services
• Connection type: Solvent weld
• Fitting type: 90° tee
• Operating temperature range: 5°C to 90°C
• Maximum working pressure: Up to 25 bar
• Pressure rating at 70°C: 10 bar
• Suitability: Potable (drinking) water
• Fire classification: Euroclass B-s1,d0
• Approvals: WRAS approved
• System compatibility: HTA matched pipe, fittings and valves

The HTA 90° tee fitting is designed to create a perpendicular branch connection within high-pressure hot and cold water pipework. Manufactured from robust CPVC, it offers excellent resistance to temperature fluctuations, pressure loading and long-term mechanical stress.

Its precision-moulded internal bore promotes balanced flow through the main run and branch, helping to limit pressure drop, reduce internal resistance and discourage scale or biofilm formation. The corrosion-free material ensures the fitting maintains both structural integrity and water quality throughout the service life of the system.

Produced as part of the HTA system by Aliaxis, this tee integrates seamlessly with compatible HTA pipes and valves. Solvent weld assembly allows for fast, clean installation without hot works, making it a practical and cost-effective alternative to copper in pressurised water applications.

• High pressure capability: Suitable for systems operating up to 25 bar
• Temperature resistant: Designed for reliable use from 5°C to 90°C
• WRAS approved: Certified for potable water distribution
• Optimised internal bore: Helps reduce turbulence, scale and biofilm risk
• Corrosion free material: Will not rust, pit or degrade over time
• Fire performance: Achieves Euroclass B-s1,d0 classification
• Lightweight construction: Easier handling and faster installation
• HTA system matched: Designed to work seamlessly with HTA pipes and valves
