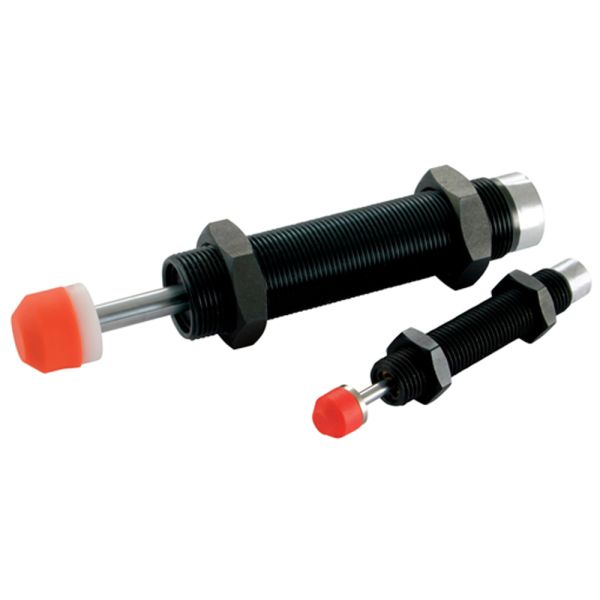

Self-compensating High Impact Shock Absorbers
Useful Information
All text and product images are the intellectual property and copyright of Pipestock Limited

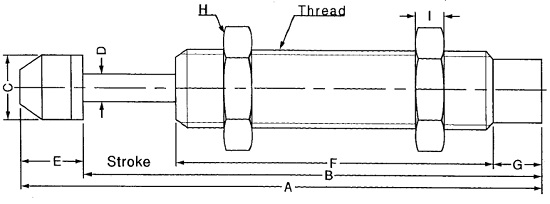

Key Features / Tech Specs / Dimensions:
- Manufacturer: Kelm
- Working Temperature -10°C to +80°C
- Various Mounting Thread Sizes Available
| Product Code | Thread | Stroke (mm) | A | B | C | D | E | F | G | H | I |
| 369652 | M8 X 1.0 | 6 | 52.4 | 44 | 6.6 | 2.8 | 8.4 | 33 | 5 | 11 | 3 |
| 369653 | M10 X 1.0 | 5 | 41.2 | 32.7 | 8.6 | 3 | 8.5 | 22.9 | 4.8 | 12.7 | 3 |
| 369654 | M10 X 1.0 | 8 | 59.5 | 51 | 8.6 | 3 | 8.5 | 38 | 5 | 12.7 | 3 |
| 369655 | M12 X 1.0 | 10 | 69.5 | 60 | 10.3 | 3 | 9.5 | 45.5 | 4.5 | 14 | 4 |
| 369656 | M14 X 1.5 | 12 | 98.7 | 88 | 12 | 4 | 10.7 | 67 | 9 | 19 | 6 |
| 369657 | M14 X 1.5 | 16 | 121.7 | 111 | 12 | 4 | 10.7 | 86 | 9 | 19 | 6 |
| 369658 | M20 X 1.5 | 20 | 146.8 | 130 | 18 | 6 | 16.8 | 101 | 9 | 26 | 8 |
| 369659 | M20 X 1.5 | 50 | 233.8 | - | 18 | 6 | 16.8 | 158 | 9 | 26 | 8 |
| 369660 | M25 X 1.5 | 25 | 155.5 | 136 | 22 | 8 | 19.5 | 101 | 10 | 32 | 10 |
| 369661 | M25 X 1.5 | 40 | 216.3 | - | 22 | 8 | 39.3 | 127 | 10 | 32 | 10 |
| Product Code | Max. Nm Per Cycle (Et) | Max. Nm Per Hour (Etc) | Max. Effective Mass (Me) kg | Max. Impact Speed (v)m/s |
| 369652 | 3 | 7000 | 6 | 0.3-2.5 |
| 369653 | - | - | - | - |
| 369654 | - | - | - | - |
| 369655 | 20 | 33000 | 40 | 0.3-2.5 |
| 369656 | 15 | 30000 | 8 | 3 |
| 369657 | 20 | 35000 | 10 | 3 |
| 369658 | 40 | 40000 | 30 | 3.5 |
| 369659 | 60 | 60000 | 60 | 3.5 |
| 369660 | 80 | 54000 | 200 | 4 |
| 369661 | 120 | 75000 | 300 | 4 |
