PVC Reducing Socket Threaded
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 1/2" x 3/8" to 4" x 3"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Connection type: Threaded (BSP)
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
Designed to connect two BSP male threaded components of different sizes within an imperial pipe system. It provides a straightforward mechanical reduction where solvent welding is not required, making it ideal for adapting pipework, valves or equipment with mismatched thread sizes.
Manufactured from corrosion-resistant PVCu, the reducing socket delivers reliable long-term performance across water supply, industrial and general engineering applications. The precisely formed BSP female threads ensure secure connections at both ends, while the compact reducing design helps maintain neat and efficient pipe layouts.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Threaded size reduction: Connects BSP male threaded components of different sizes
- BSP female threads both ends: Provides secure mechanical joints without additional adaptors
- Corrosion-resistant PVCu: Prevents rust, scale and pitting over time
- Compact reducing design: Minimises added length in tight installations
- Imperial sizing compatibility: Designed to match standard BSP threaded fittings
- Service-friendly connection: Ideal for systems requiring future adjustment or maintenance

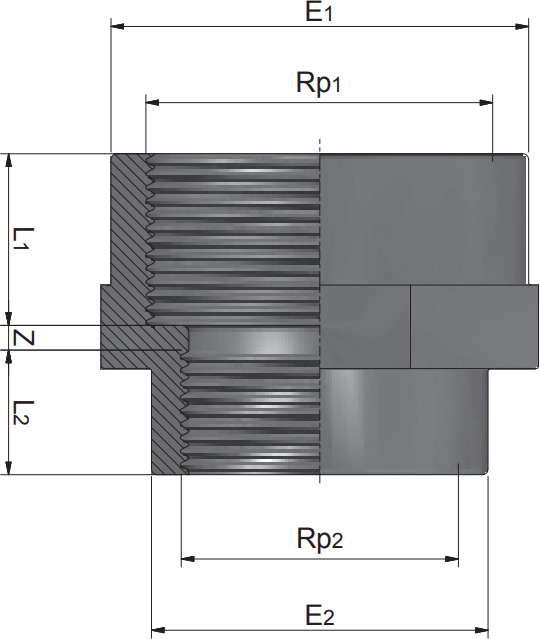

Dimensions
| SKU | Nominal Size (inch) | Rp2 (inch) | L1 min (mm) | L2 min (mm) | Z max (mm) | CH (mm) | E1 (mm) | E2 (mm) |
| 359829 | 1/2 | 3/8 | 13.2 | 10.1 | 8.7 | 30 | 28 | 23 |
| 356932 | 3/4 | 1/2 | 14.5 | 13.2 | 10.3 | 36 | 34 | 27 |
| 356933 | 1 | 3/4 | 16.8 | 14.5 | 10.7 | 46 | 42 | 33 |
| 356934 | 1 1/4 | 1 | 19.1 | 16.8 | 12.1 | 55 | 51 | 41 |
| 356935 | 1 1/2 | 1 1/4 | 19.1 | 19.1 | 11.8 | 65 | 58 | 50 |
| 356936 | 2 | 1 1/2 | 23.4 | 19.1 | 12.5 | 75 | 72 | 61 |
| 359830 | 2 1/2 | 2 | 26.7 | 23.4 | 13.9 | 95 | 89 | 75 |
| 359831 | 3 | 2 1/2 | 29.8 | 26.7 | 15.5 | 105 | 103 | 88 |
| 359832 | 4 | 3 | 35.8 | 29.8 | 16.4 | 130 | 130 | 106 |
