Pressure Relief Valve Brass

• Valve Type: Adjustable Pressure Relief Valve
• Materials:
  • Valve Body & Union Threads: Brass
  • Union Socket: Unplasticised Polyvinyl Chloride (PVCu)
• Sizes: 1/2" to 3"
• Pressure rating: Adjustable from 0.5 to 10 bar
• Temperature range: 5°C to 60°C
• Connection Type: Solvent Weld Union Ends
• PED 2014/68/EU Classification: Category 1
• Features:
  • Spring loaded
  • Suitable for use as a bypass valve
  • Manual test function

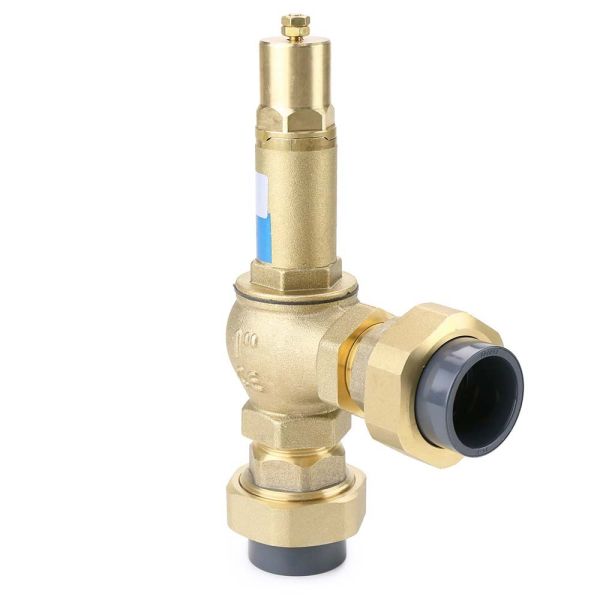

This adjustable pressure relief valve kit combines a high-quality brass pressure relief valve with two PVCu composite unions, providing a convenient solution for installation into nominal bore PVC pipe systems. The kit is designed to relieve excess pressure in a controlled manner, helping to protect pipework and connected equipment from overpressure conditions.

The valve features an adjustable spring mechanism, allowing the discharge pressure to be set between 0.5 and 10 bar, and includes a manual test function to support routine operational checks without system shutdown. Suitable for use with gas, steam and liquid media, the valve can also be installed as a bypass valve where controlled pressure relief or circulation is required.

The composite unions feature BSP threaded connections to the valve and plain solvent weld ends for connection to PVC pipe. Supplied unassembled, they allow flexibility during installation and alignment. PTFE tape is recommended when fitting the threaded ends to the valve, while standard PVC solvent cement and cleaner should be used to bond the plain ends to the pipe for a secure, leak-free joint.

Classified as a pressure accessory under the Pressure Equipment Directive, this product is intended for pressure relief and regulation duties only and must not be used as a safety valve.

This kit consists of the following parts:

• 1x Brass Pressure Relief Valve Threaded
• 2x PVCu Composite Union Plain x Threaded Male Brass

• Complete installation kit: Includes brass pressure relief valve and two PVCu composite unions
• Adjustable pressure setting: Can be set between 0.5 and 10 bar to suit system requirements
• Wide media compatibility: Suitable for gas, steam and liquid applications
• Manual test function: Enables routine testing without removing the valve
• PVC pipe compatibility: Designed for use with nominal bore PVC pipe systems
• Simple jointing method: BSP threaded valve connection with solvent weld pipe connection
• Bypass valve suitable: Ideal for controlled pressure relief or circulation duties
