PVC Metric Standard 2-Way Ball Valve
Technical Specification
- Materials:
- Body & Handle: Unplasticised Polyvinyl Chloride (PVCu)
- Seals: Ethylene Propylene Diene Monomer Rubber (EPDM)
- Sizes: 16mm to 110mm
- Pressure rating: 16 bar at 20°C
- Temperature range: 5°C to 60°C
- Connection type: Solvent Weld
- Colour: Grey (Red/Orange Handle)
- Operation: Quater-turn manual operation
- Installation Orientation: Horizontal or vertical
- Testing: Every valve is individually tested
- Bore: Full bore
- Approvals: WRAS-approved
Description
Built for demanding installations where performance, reliability, and flow efficiency are critical, this industrial PVC metric ball valve is engineered to a higher specification than standard isolation valves. The full-bore design allows unrestricted flow through the valve, minimising pressure loss and reducing the risk of debris build-up within the system.
Each valve is individually tested before leaving the factory, providing confidence in sealing integrity and operational reliability, particularly important in industrial, commercial, and process-driven environments. The smooth quarter-turn action enables fast and precise isolation, even in systems requiring frequent operation.
Manufactured from high-quality PVCu with EPDM seals, the valve offers excellent resistance to corrosion, scale, and a wide range of water-based and compatible fluids. Solvent-weld ends provide strong, permanent connections, making this valve ideal for long-term installations where durability and consistent performance are essential when the appropriate solvent cement and cleaner are used.
Typical applications include:
- Hospitals and healthcare facilities: Used where valve reliability is critical, and system failure can result in serious operational disruption, risk to critical services and costly maintenance.
- Chemical plants and process systems: Suitable for compatible fluids in installations where downtime carries high operational risk.
- Industrial plant rooms: Ideal for main isolation points requiring dependable performance and full-bore flow.
- Water treatment and utility systems: Used in controlled process lines where long-term integrity and pressure stability are essential.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Full-bore design: Maintains maximum flow capacity with minimal pressure drop.
- Individually tested valves: Every unit is pressure tested to ensure dependable performance.
- Industrial-grade construction: Designed for demanding commercial and industrial pipe systems.
- Quarter-turn operation: Fast, positive shut-off with clear open and closed positioning.
- Ergonomic handle: Comfortable manual control for regular operation.
- 16 bar pressure rating: Suitable for high-performance PVC metric installations at 20°C.
- Solvent weld connections: Secure, leak-free joints with long service life.
- BSI Kitemark certified: Independently verified quality and manufacturing standards.
- Flexible installation: Suitable for horizontal or vertical pipework layouts.

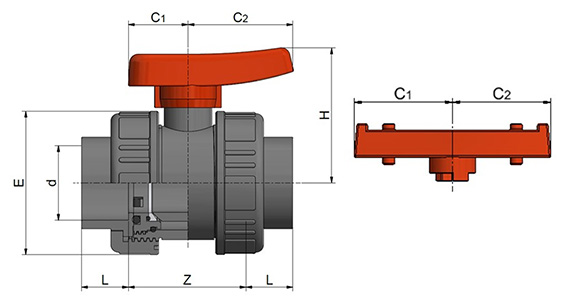

Dimensions
| SKU | Nominal Size (mm) | DN | L (mm) | C1 (mm) | C2 (mm) | H (mm) | Z (mm) | E (mm) | Weight (kg) |
| 356086 | 16 | 15 | 14.5 | 22 | 42 | 50 | 51 | 49 | 0.140 |
| 356087 | 20 | 15 | 16 | 22 | 42 | 50 | 48 | 49 | 0.140 |
| 356088 | 25 | 20 | 19 | 24 | 49 | 58 | 54 | 60 | 0.200 |
| 356089 | 32 | 25 | 22 | 26 | 59 | 69 | 62 | 69 | 0.300 |
| 356090 | 40 | 32 | 26 | 32 | 65 | 76 | 69 | 80 | 0.450 |
| 356091 | 50 | 40 | 31 | 40 | 71 | 92 | 81 | 96 | 0.690 |
| 356092 | 63 | 50 | 39 | 45 | 79 | 104 | 94 | 116 | 1.150 |
| 356093 | 75 | 65 | 44 | 84.5 | 84.5 | 145 | 141 | 167 | 3.100 |
| 356094 | 90 | 80 | 51 | 84.5 | 84.5 | 145 | 140 | 167 | 3.200 |
| 356095 | 110 | 100 | 61 | 102 | 102 | 170 | 162 | 209 | 5.500 |
