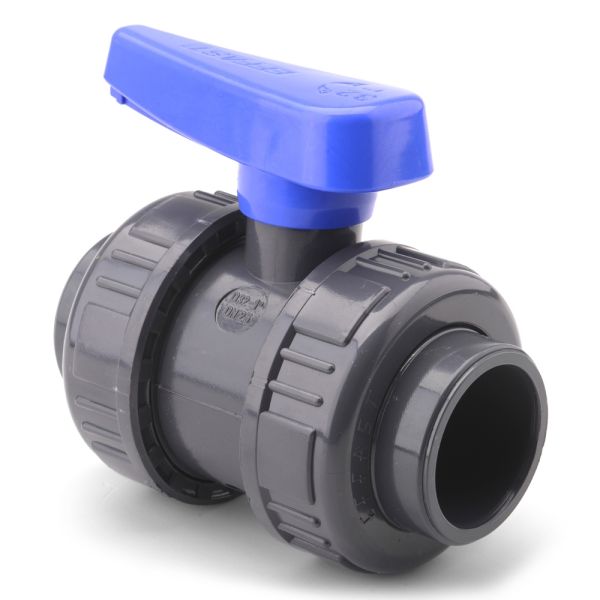

PVC Metric Economy 2-Way Ball Valve
Technical Specification
- Materials:
- Body & Handle: Unplasticised Polyvinyl Chloride (PVCu)
- Seals: Ethylene Propylene Diene Monomer Rubber (EPDM)
- Sizes: 16mm to 110mm
- Pressure rating: 16 bar at 20°C
- Temperature range: 5°C to 60°C
- Connection type: Solvent Weld
- Colour: Grey (Blue Handle)
- Operation: Quater-turn manual operation
- Installation Orientation: Horizontal or vertical
- Testing: Batch tested, 1 in 1000
- Bore: Full bore
Description
Designed for maximum flexibility and ease of maintenance, this double union ball valve allows full removal of the valve body without cutting the pipework. With demountable unions on both sides, it is ideal for installations where regular inspection, servicing, or replacement may be required.
The smooth quarter-turn mechanism provides fast and positive isolation, making it suitable for both domestic and industrial PVC metric systems. Solvent weld connections deliver strong, permanent joints, while the union ends simplify downstream and upstream disconnection when needed.
Manufactured from durable PVCu with EPDM seals, the valve offers excellent resistance to corrosion, scale build-up, and common water-based fluids. Compliance with WRAS and BS EN standards makes it suitable for potable water applications and regulated environments.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Double union design: Allows complete valve removal without disturbing surrounding pipework.
- Quarter-turn operation: Quick and reliable shut-off with minimal effort.
- Ergonomic teardrop handle: Comfortable grip for precise manual control.
- Oversized handle on larger sizes: Improved leverage on sizes 75mm and above.
- 16 bar pressure rating: Suitable for high-performance metric PVC systems at 20°C.
- Solvent weld ends: Secure, leak-free installation with long service life.
- WRAS approved: Safe for use in potable water systems.
- Batch tested quality: Tested at a rate of 1 in 1000 to ensure dependable operation.
- Flexible installation: Suitable for horizontal or vertical pipe runs.
Dimensions
| SKU | Nominal Size (mm) | L (mm) | C1 (mm) | C2 (mm) | Z (mm) | H (mm) | E (mm) | Weight (kg) |
| 356059 | 16 | 14.5 | 22 | 42 | 51 | 50 | 49 | 0.140 |
| 356060 | 20 | 16 | 22 | 42 | 48 | 50 | 49 | 0.140 |
| 356061 | 25 | 19 | 24 | 49 | 54 | 58 | 60 | 0.200 |
| 356062 | 32 | 22 | 26 | 59 | 24 | 69 | 69 | 0.300 |
| 356063 | 40 | 26 | 32 | 65 | 69 | 76 | 80 | 0.450 |
| 356064 | 50 | 31 | 40 | 71 | 81 | 92 | 96 | 0.690 |
| 356065 | 63 | 39 | 45 | 79 | 94 | 104 | 116 | 1.150 |
| 356066 | 75 | 44 | 84.5 | 84.5 | 141 | 145 | 167 | 3.050 |
| 356067 | 90 | 51 | 84.5 | 84.5 | 140 | 145 | 167 | 3.200 |
| 356068 | 110 | 61 | 102 | 102 | 162 | 170 | 209 | 5.400 |
