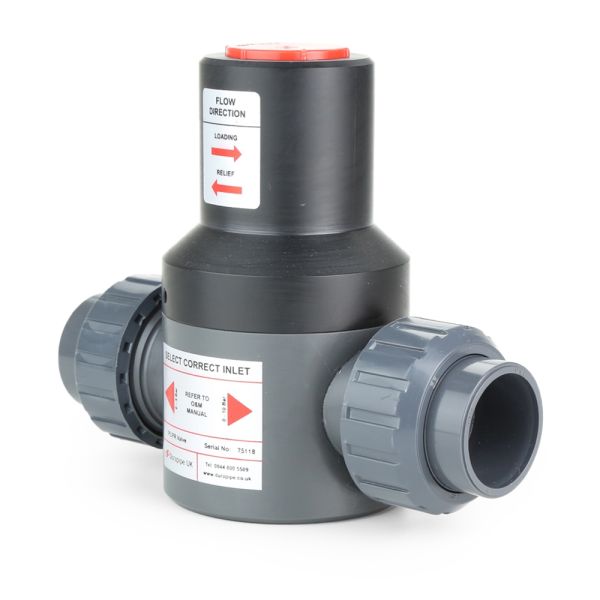

Pressure Loading/Relief Valve

Pressure Loading/Relief Valve

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Durapipe PVC LR valves metric
  • Material: Polyvinyl chloride (PVC)
  • Seal Material: Ethylene Propylene Diene Terpolymer (EPDM)
  • Operating Temperature: 0°C to 60°C
  • Metric plain union fittings
  • Sizes from 20mm to 63mm available



Useful Info:

These pressure loading and relief valves operate to provide multiple functions within a single valve body offering both pressure loading and pressure relief within pipework systems. They are simple and easy to use and designed with attached labels on the valve to indicate installation directions.

The pressure loading feature allows a back pressure to be built up within the pipe system of between 0-3 bar, whilst the pressure relief function can be set to between 0-10 bar to provide system protection and works by relieving system pressure once the flow of liquid exceeds the set pressure parameters.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
DP PVC LR Valve EPDM Union Plain 20mm
Code
375502
Product Name
DP PVC LR Valve EPDM Union Plain 20mm
List Price
£443.90
You Pay
£310.73
You Save
30%
Qty
DP PVC LR Valve EPDM Union Plain 25mm
Code
375503
Product Name
DP PVC LR Valve EPDM Union Plain 25mm
List Price
£511.28
You Pay
£357.90
You Save
30%
Qty
DP PVC LR Valve EPDM Union Plain 32mm
Code
375504
Product Name
DP PVC LR Valve EPDM Union Plain 32mm
List Price
£584.08
You Pay
£408.86
You Save
30%
Qty
DP PVC LR Valve EPDM Union Plain 40mm
Code
375505
Product Name
DP PVC LR Valve EPDM Union Plain 40mm
List Price
£679.96
You Pay
£475.97
You Save
30%
Qty
DP PVC LR Valve EPDM Union Plain 50mm
Code
375506
Product Name
DP PVC LR Valve EPDM Union Plain 50mm
List Price
£781.73
You Pay
£547.21
You Save
30%
Qty
DP PVC LR Valve EPDM Union Plain 63mm
Code
375507
Product Name
DP PVC LR Valve EPDM Union Plain 63mm
List Price
£926.01
You Pay
£648.21
You Save
30%
Qty
6 products
