Butterfly Valve Complete Set - Full Face
Useful Information

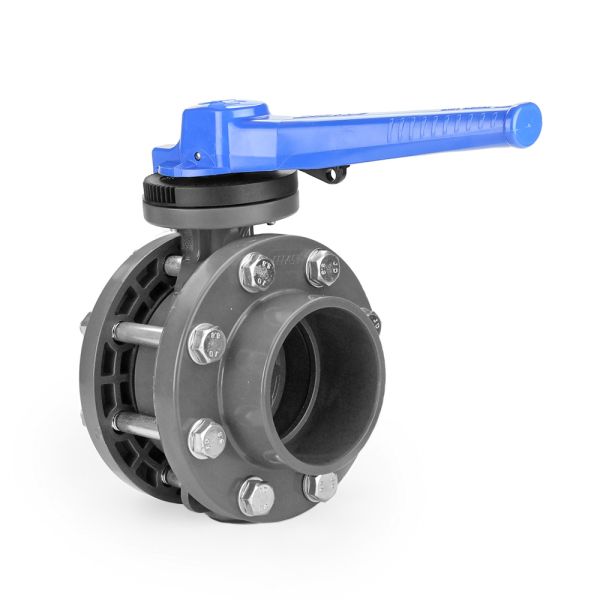

This kit comprises all the parts you need to form an install-ready PVC butterfly valve.
The number of nuts, bolts and washers supplied will correspond to the number of holes in the backing ring.
They are available from 75mm up to 110mm in size.
Please note:- this kit is supplied unassembled.
| Material | Polyvinyl chloride - unplasticised (PVCu) |
| Seal Material | EPDM |
| Temperature | 0 - 60°C |
| Max Pressure | 10 bar |
| Kit includes | 1 x PVCu butterfly valve 2 x PVCu full-faced flanges 1 x Complete set of BZP bolts, nuts and washers |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
