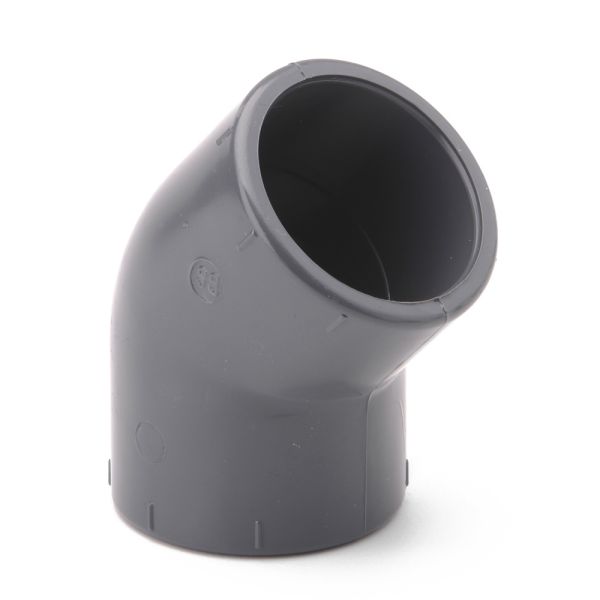

Elbow 45°

Useful Information

This elbow is used to join together two pieces of metric PVC pipe, creating an angle of 45°. PVC solvent cement should be used along with cleaner to bond the pipes and fitting together.



Material PVCu
Sizes Available 16 - 315mm

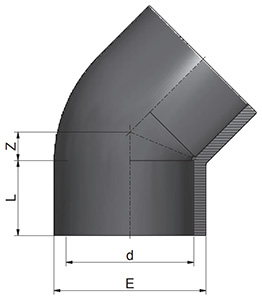

PVC-Elbow-45-Diagram

Product Code Nominal Size (mm) L (mm) Z (mm) E (mm)
356856 16 14 6 23
356857 20 16 11 27
356858 25 19 6 33
356859 32 22 8 41
356860 40 26 10 50
356861 50 31 12 61
356862 63 38 15 75
356863 75 44 18 89
356864 90 51 21 106
356865 110 61 25 128
356866 125 69 27 145
356867 140 76 32 164
356868 160 86 36 184
356869 200 106 43 232
356870 225 119 49 258
356871 250 131 58 286
356872 315 164 66 359




Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approved

Approval number 1705080

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60041



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356856PVCu Elbow 45 Plain 16mm £4.31 78% £0.95
356857PVCu Elbow 45 Plain 20mm £4.71 78% £1.04
356858PVCu Elbow 45 Plain 25mm £5.11 78% £1.12
356859PVCu Elbow 45 Plain 32mm £5.84 78% £1.28
356860PVCu Elbow 45 Plain 40mm £8.56 78% £1.88
356861PVCu Elbow 45 Plain 50mm £9.30 78% £2.05
356862PVCu Elbow 45 Plain 63mm £16.02 78% £3.52
356863PVCu Elbow 45 Plain 75mm £30.24 78% £6.65
356864PVCu Elbow 45 Plain 90mm £37.60 78% £8.27
356865PVCu Elbow 45 Plain 110mm £79.70 78% £17.53
356866PVCu Elbow 45 Plain 125mm £122.74 78% £27.00
356867PVCu Elbow 45 Plain 140mm £158.89 78% £34.96
356868PVCu Elbow 45 Plain 160mm £185.71 78% £40.86
356869PVCu Elbow 45 Plain 200mm £398.59 78% £87.69
356870PVCu Elbow 45 Plain 225mm £512.55 78% £112.76
356871PVCu Elbow 45 Plain 250mm £1,212.84 78% £266.83
356872PVCu Elbow 45 Plain 315mm £2,259.79 78% £497.15
