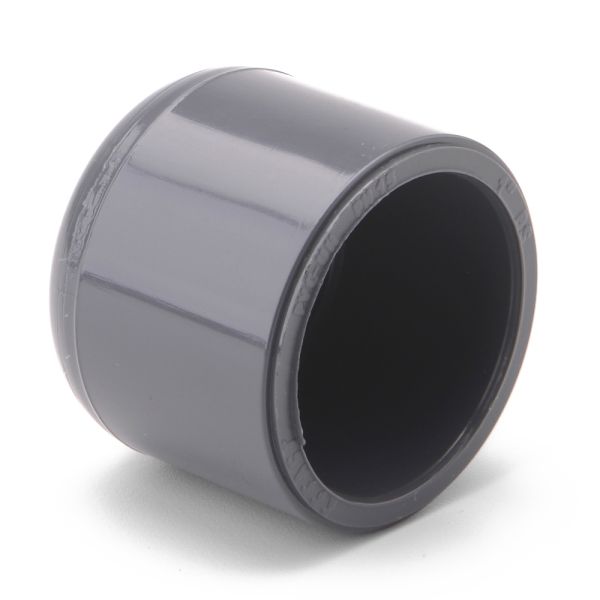

PVC Metric Cap
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 16mm to 225mm
- Pressure rating:
- 16mm to 160mm: 16 bar at 20°C
- 200mm to 225mm: 10 bar at 20°C
- Temperature range: 5°C to 60°C
- Connection type: Solvent Weld
- Colour: Grey
- Standards:
- BS EN 1452-2
- WRAS approved
- BSI Kitemark (ISO 50001:2018)
Description
Designed to provide a secure and permanent termination to metric PVC pipework systems, this fitting is used to blank off the end of a pipeline or unused outlet. Manufactured from high-quality PVCu, it offers excellent chemical resistance, mechanical strength and long-term reliability across a wide range of industrial, commercial and water applications.
The solvent weld socket creates a strong, leak-free joint when installed with the correct solvent cement and cleaner, forming a homogeneous bond between the pipe and fitting. Its smooth internal bore helps minimise dead space at the pipe end, reducing the risk of debris build-up and maintaining system hygiene.
Suitable for cold water distribution, industrial process pipework and general plumbing installations, this fitting complies with recognised UK and European standards, making it a dependable choice for both new installations and system modifications.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- High-pressure performance: Rated up to 16 bar at 20°C on sizes up to 160mm for reliable system closure
- Solvent weld connection: Creates a permanent, watertight joint with excellent pull-out resistance
- Durable PVCu construction: Offers strong resistance to corrosion, chemicals and impact
- Wide size availability: Covers common metric pipe sizes from 16mm through to 225mm
- Approved for potable water: WRAS approval makes it suitable for drinking water systems
- Standards compliant: Manufactured in accordance with BS EN 1452-2 for confidence in quality and compatibility

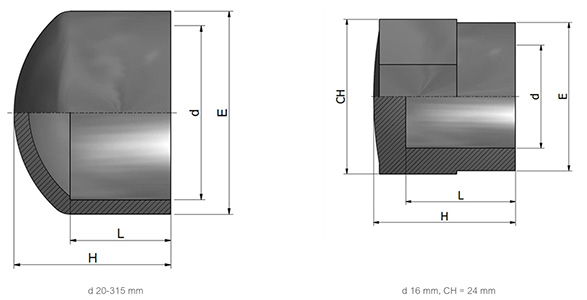

Dimensions
| SKU | Nominal Size (mm) | L (mm) | H (mm) | E (mm) | Pressure Rating (Bar) | Weight (kg) |
| 356569 | 16 | 17 | 22 | 23 | 16 | 0.007 |
| 356570 | 20 | 16 | 30 | 27 | 16 | 0.010 |
| 356571 | 25 | 19 | 31 | 33 | 16 | 0.018 |
| 356572 | 32 | 23 | 36 | 41 | 16 | 0.030 |
| 356573 | 40 | 27 | 43 | 51 | 16 | 0.045 |
| 356574 | 50 | 33 | 49 | 61 | 16 | 0.065 |
| 356575 | 63 | 38 | 57 | 75 | 16 | 0.110 |
| 356576 | 75 | 45 | 67 | 88 | 16 | 0.208 |
| 356577 | 90 | 52 | 81 | 105 | 16 | 0.325 |
| 356578 | 110 | 63 | 97 | 128 | 16 | 0.500 |
| 356579 | 125 | 69 | 99 | 145 | 16 | 0.670 |
| 356580 | 140 | 77 | 107 | 161 | 16 | 0.920 |
| 356581 | 160 | 87 | 126 | 182 | 16 | 1.120 |
| 356582 | 200 | 106 | 166 | 231 | 10 | 1.680 |
| 356583 | 225 | 118 | 173 | 247 | 10 | 2.978 |
Downloads
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
