PVC Metric Bend 90° Short Radius
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 20mm to 110mm
- Pressure rating: 16 bar at 20°C
- Temperature range: 5°C to 60°C
- Connection type: Solvent Weld
- Colour: Grey
- Standards:
- BS EN 1452-2
- WRAS approved
- BSI Kitemark (ISO 50001:2018)
Description
This PVCu metric 90-degree short radius bend is designed to change the direction of pipework while maintaining smoother internal flow characteristics. The extended sweep reduces turbulence compared to 90° elbows, making it a strong choice for systems where flow efficiency, pressure stability or minimising wear is important.
PVCu provides excellent dimensional stability, corrosion resistance and long-term performance. When installed using the correct solvent cement and cleaner, it forms a strong, permanent joint with the pipe, ensuring reliable operation across both potable water and industrial applications.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
-
Radial curvature: Promotes smoother flow and reduced turbulence.
-
16 bar pressure rating: Suitable for medium-pressure applications at 20°C.
-
WRAS approved: Approved for use in potable water systems.
-
Solvent weld jointing: Creates a strong, permanent and leak-free connection.
-
Controlled metric sizing: Available in sizes ranging from 20mm to 110mm.
-
PVCu construction: Durable, corrosion-resistant and low maintenance.

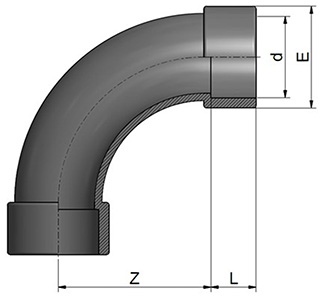

Dimensions
| SKU | Nominal Size (mm) | L (mm) | Z (mm) | E (mm) | Weight (kg) |
| 356705 | 20 | 16 | 40 | 30 | 0.045 |
| 356706 | 25 | 19 | 50 | 35 | 0.074 |
| 356707 | 32 | 22 | 64 | 42 | 0.123 |
| 356708 | 40 | 26 | 80 | 51 | 0.210 |
| 356709 | 50 | 31 | 100 | 63 | 0.313 |
| 356710 | 63 | 38 | 126 | 77 | 0.544 |
| 356711 | 75 | 44 | 150 | 94 | 1.007 |
| 356712 | 90 | 51 | 180 | 113 | 1.756 |
| 356713 | 110 | 61 | 220 | 137 | 2.814 |
