PVC Metric Union Plain x Thread
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 20mm x 1/2" x 110mm x 4"
- Pressure rating: 16 bar at 20°C
- Temperature range: 5°C to 60°C
- Connection type: Solvent Weld
- Colour: Grey
- Standards:
- BS EN 1452-2
- WRAS approved
- BSI Kitemark (ISO 50001:2018)
Description
This fitting is designed to provide a demountable transition between metric PVC pipework and imperial threaded components. Manufactured from high-quality PVCu, it combines the strength of a solvent weld joint with the flexibility of a removable union connection, making it ideal for installations that require regular access or future modification.
The metric plain socket is solvent-welded onto the pipe, while the imperial BSPP threaded side connects to valves, pumps or other threaded equipment. A central union nut and EPDM sealing ring allow the fitting to be disconnected and reassembled without disturbing the surrounding pipework, ensuring reliable sealing and precise alignment every time.
Suitable for potable water, commercial plumbing and industrial pipework systems, this adaptor union offers a practical and professional solution when combining metric PVC systems with imperial threaded connections. When installed using the correct solvent cement and cleaner, it forms a strong, permanent joint with the pipe, ensuring reliable operation across both potable water and industrial applications.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Metric to imperial transition: Connects solvent-weld metric pipe to BSPP threaded components
- Demountable union design: Allows easy disconnection without cutting pipework
- High-pressure performance: Rated to 16 bar at 20°C across the full size range
- Solvent weld metric end: Provides a strong, permanent joint
- Precision BSPP thread: Manufactured to ISO 228-1 for secure compatibility
- EPDM sealing ring: Ensures a dependable, leak-free connection
- Durable PVCu construction: Resistant to corrosion, chemicals and impact
- Potable water approved: Suitable for drinking water installations
Dimensions

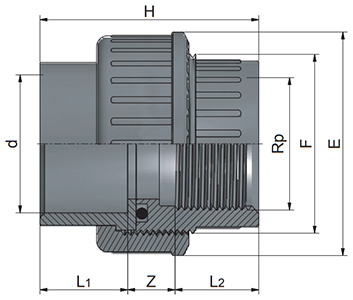

| SKU | Nominal Size (mm x inch) | d (mm) | Rp (inch) | L1 (mm) | L2 (mm) | F (inch) | Z (mm) | H (mm) | E (mm) | Weight (kg) |
| 356544 | 20 x 1/2" | 20 | 1/2" | 16 | 15 | 1" | 14 | 45 | 43 | 0.042 |
| 356545 | 25 x 3/4" | 25 | 3/4" | 19 | 16.3 | 1 1/4" | 15.7 | 51 | 54 | 0.070 |
| 356546 | 32 x 1" | 32 | 1" | 22 | 19.5 | 1 1/2" | 15.5 | 57 | 60 | 0.095 |
| 356547 | 40 x 1 1/4" | 40 | 1 1/4" | 27 | 21.4 | 2" | 19.6 | 68 | 75 | 0.155 |
| 356548 | 50 x 1 1/2" | 50 | 1 1/2" | 31 | 21.4 | 2 1/4" | 27.6 | 80 | 81 | 0.240 |
| 356549 | 63 x 2" | 63 | 2" | 38 | 25.7 | 2 3/4" | 34.3 | 98 | 99 | 0.405 |
| 359898 | 75 x 2 1/2" | 75 | 2 1/2" | 44 | 30.2 | 3 1/2" | 35.8 | 110 | 120 | 0.625 |
| 359899 | 90 x 3" | 90 | 3" | 51 | 33.3 | 4" | 40.7 | 125 | 134 | 0.865 |
| 359900 | 110 x 4" | 110 | 4" | 61 | 39.3 | 5" | 44.7 | 145 | 163 | 1.340 |
