PVC Metric Union
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 16mm to 110mm
- Pressure rating: 16 bar at 20°C
- Temperature range: 5°C to 60°C
- Connection type: Solvent Weld
- Colour: Grey
- Standards:
- BS EN 1452-2
- WRAS approved
- BSI Kitemark (ISO 50001:2018)
Description
This fitting is designed to allow easy disconnection and reconnection of metric PVC pipework without the need to cut the pipe. Manufactured from high-quality PVCu, it provides a durable and corrosion-resistant solution for systems that require regular maintenance, inspection or future modification.
The union features solvent-welded sockets on both ends, combined with a central demountable body and elastomeric seal. Once installed, the union can be undone to separate the pipework while maintaining accurate alignment on reassembly, making it ideal for installations where accessibility is important.
Suitable for potable water, commercial plumbing and industrial pipework systems, this fitting offers a practical balance between permanent solvent weld joints and the flexibility of a removable connection when installed using the correct solvent cement and cleaner.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Demountable design: Allows pipework to be disconnected without cutting or disturbing surrounding joints
- High-pressure performance: Rated to 16 bar at 20°C across the full size range
- Solvent weld ends: Provides strong, permanent joints on either side of the union
- EPDM sealing ring: Ensures a reliable, leak-free seal when reassembled
- Durable PVCu construction: Resistant to corrosion, chemicals and impact
- Potable water approved: WRAS approval makes it suitable for drinking water systems

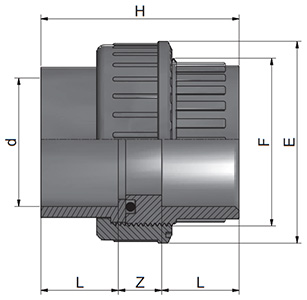

Dimensions
| SKU | Nominal Size (mm) | L (mm) | F (inch) | Z (mm) | H (mm) | E (mm) | Weight (kg) |
| 356535 | 16 | 14 | 3/4 | 14 | 42 | 34 | 0.027 |
| 356536 | 20 | 16 | 1 | 13 | 45 | 43 | 0.042 |
| 356537 | 25 | 19 | 1 1/4 | 13 | 51 | 54 | 0.068 |
| 356538 | 32 | 22 | 1 1/2 | 13 | 57 | 60 | 0.091 |
| 356539 | 40 | 27 | 2 | 14 | 68 | 75 | 0.149 |
| 356540 | 50 | 31 | 2 1/4 | 18 | 80 | 81 | 0.189 |
| 356541 | 63 | 38 | 2 3/4 | 22 | 98 | 99 | 0.322 |
| 356542 | 75 | 44 | 3 1/2 | 22 | 110 | 120 | 0.567 |
| 356543 | 90 | 51 | 4 | 23 | 125 | 134 | 0.725 |
| 359897 | 110 | 61 | 5 | 23 | 145 | 163 | 1.265 |
