PVC Metric Tee 90° Plain x Thread
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 16mm x 3/8" to 110mm x 4"
- Pressure rating: 16 bar at 20°C
- Temperature range: 5°C to 60°C
- Connection type: Solvent Weld
- Colour: Grey
- Standards:
- BS EN 1452-2
- WRAS approved
- BSI Kitemark (ISO 50001:2018)
Description
This fitting is designed to introduce a 90° branch from a metric PVC pipeline while providing an imperial threaded connection at the outlet. Manufactured from high-quality PVCu, it offers a durable and corrosion-resistant solution for distributing flow to valves, instruments or auxiliary pipework.
The main run features metric solvent weld sockets for permanent, high-strength joints, while the central branch incorporates a precision-moulded BSPP female thread. This configuration allows threaded components to be installed or removed without disturbing the main pipework, making it ideal for systems that may require future maintenance or expansion.
Suitable for potable water, commercial plumbing, and industrial pipework systems, this adaptor tee provides a clean and reliable method of combining metric solvent-weld pipework with imperial threaded outlets, while maintaining full pressure performance and compliance with recognised standards when installed using the correct solvent cement and cleaner.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Metric to imperial branching: Introduces a threaded outlet from a metric PVC pipeline
- 90° tee configuration: Enables efficient flow distribution and system branching
- High-pressure performance: Rated to 16 bar at 20°C across the full size range
- Solvent weld main run: Provides strong, permanent joints on the metric pipework
- Precision BSPP female thread: Manufactured to ISO 228-1 for secure, leak-free connections
- Durable PVCu construction: Resistant to corrosion, chemicals and impact
- Potable water approved: WRAS approval makes it suitable for drinking water systems

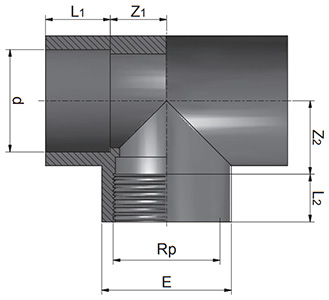

Dimensions
| SKU | Nominal Size (mm x inch) | d (mm) | Rp (inch) | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | E (mm) | Weight (kg) |
| 357201 | 16 x 3/8" | 16 | 3/8 | 14 | 11.4 | 9 | 12 | 23 | 0.017 |
| 357202 | 20 x 1/2" | 20 | 1/2 | 16 | 15 | 11 | 13 | 28 | 0.030 |
| 357203 | 25 x 3/4" | 25 | 3/4 | 19 | 16.3 | 14 | 17 | 34 | 0.045 |
| 357204 | 32 x 1" | 32 | 1 | 22 | 19.1 | 17 | 21 | 42 | 0.075 |
| 357205 | 40 x 1 1/4" | 40 | 1 1/4 | 27 | 21.4 | 21 | 27 | 51 | 0.120 |
| 357206 | 50 x 1 1/2" | 50 | 1 1/2 | 31 | 21.4 | 26 | 37 | 61 | 0.195 |
| 357207 | 63 x 2" | 63 | 2 | 38 | 25.7 | 33 | 47 | 75 | 0.335 |
| 357208 | 75 x 2 1/2" | 75 | 2 1/2 | 44 | 30.2 | 39 | 53 | 89 | 0.505 |
| 357209 | 90 x 3" | 90 | 3 | 51 | 33.3 | 47 | 65 | 106 | 0.810 |
| 357210 | 110 x 4" | 110 | 4 | 61 | 39.3 | 57 | 79 | 129 | 1.325 |
