Socket

Useful Information

Sockets are used to join together two pieces of metric PVC pipe of the same diameter. PVC solvent cement should be used along with cleaner to bond the pipes and fitting together.



Material PVCu
Sizes Available 16 - 315mm

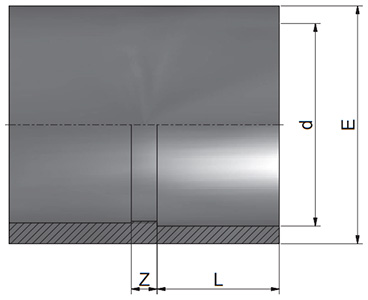

Socket-Diagram

Product Code Nominal Size (mm) L (mm) Z (mm) E (mm)
356900 16 14 3 23
356901 20 16 3 27
356902 25 19 3 33
356903 32 22 3 41
356904 40 26 3 50
356905 50 31 3 61
356906 63 38 3 75
356907 75 44 4 88
356908 90 51 5 106
356909 110 61 6 129
356910 125 69 7 145
356911 140 76 8 161
356912 160 86 8 182
356913 200 106 10 227
356914 225 119 11 258
356915 250 131 11 272
356916 315 164 12 355




Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approved

Approval number 1705080

BSI Kitemark Approved Product - sold by Pipestock

BSI Kitemark approved

Licence number KM60041



If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



All text and product images are the intellectual property and copyright of Pipestock Limited

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
356900PVCu Socket Plain 16mm £1.98 78% £0.44
356901PVCu Socket Plain 20mm £2.09 78% £0.46
356902PVCu Socket Plain 25mm £2.37 78% £0.52
356903PVCu Socket Plain 32mm £2.63 78% £0.58
356904PVCu Socket Plain 40mm £4.16 78% £0.91
356905PVCu Socket Plain 50mm £5.18 78% £1.14
356906PVCu Socket Plain 63mm £7.46 78% £1.64
356907PVCu Socket Plain 75mm £19.08 78% £4.20
356908PVCu Socket Plain 90mm £29.27 78% £6.44
356909PVCu Socket Plain 110mm £41.91 78% £9.22
356910PVCu Socket Plain 125mm £68.79 78% £15.13
356911PVCu Socket Plain 140mm £99.32 78% £21.85
356912PVCu Socket Plain 160mm £106.65 78% £23.46
356913PVCu Socket Plain 200mm £255.10 78% £56.12
356914PVCu Socket Plain 225mm £304.77 78% £67.05
356915PVCu Socket Plain 250mm £523.39 78% £115.14
356916PVCu Socket Plain 315mm £1,028.17 78% £226.20
