PVC Metric Elbow 90° Plain x Thread
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 16mm x 3/8" to 110mm x 40"
- Pressure rating: 16 bar at 20°C
- Temperature range: 5°C to 60°C
- Connection type: Solvent Weld
- Colour: Grey
- Standards:
- BS EN 1452-2
- WRAS approved
- BSI Kitemark (ISO 50001:2018)
Description
This fitting is designed to provide a 90° change in direction while transitioning from metric PVC pipework to imperial threaded components. Manufactured from high-quality PVCu, it offers a strong and corrosion-resistant solution for installations where space constraints or pipe routing require a right-angle connection.
The metric plain socket allows for a permanent solvent weld joint, while the imperial BSPP threaded outlet connects directly to valves, pumps or other threaded equipment. Precision-moulded threads ensure reliable compatibility and sealing when installed with appropriate thread sealant.
Suitable for potable water, commercial plumbing and industrial pipework systems, this adaptor elbow delivers a neat and professional method of combining metric solvent weld pipe with imperial threaded connections, while maintaining full pressure performance and compliance with recognised standards when installed using the correct solvent cement and cleaner.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- Metric to imperial transition: Connects solvent-weld metric pipe to BSPP threaded equipment
- 90° directional change: Ideal for compact layouts and tight installation spaces
- High-pressure performance: Rated to 16 bar at 20°C across the full size range
- Solvent weld socket: Provides a strong, permanent joint on the metric side
- Precision BSPP thread: Manufactured to ISO 228-1 for secure, leak-free connections
- Durable PVCu construction: Resistant to corrosion, chemicals and impact
- Potable water approved: WRAS approval makes it suitable for drinking water systems

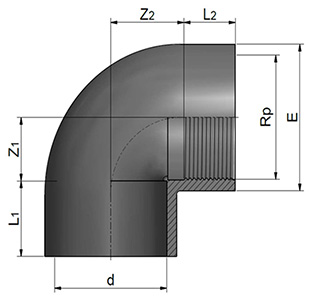

Dimensions
| SKU | Nominal Size (mm x inch) | d (mm) | Rp (inch) | L1 (mm) | L2 (mm) | Z1 (mm) | Z2 (mm) | E (mm) | Weight (kg) |
| 356836 | 16 x 3/8" | 16 | 3/8 | 14 | 11.4 | 9 | 12 | 23 | 0.013 |
| 356837 | 20 x 1/2" | 20 | 1/2 | 16 | 15 | 11 | 13 | 28 | 0.020 |
| 356838 | 25 x 3/4" | 25 | 3/4 | 19 | 16.3 | 14 | 17 | 34 | 0.035 |
| 356839 | 32 x 1" | 32 | 1 | 22 | 19.1 | 17 | 21 | 42 | 0.056 |
| 356840 | 40 x 1 1/4" | 40 | 1 1/4 | 26 | 21.4 | 21 | 27 | 51 | 0.090 |
| 356841 | 50 x 1 1/2" | 50 | 1 1/2 | 31 | 21.4 | 26 | 37 | 61 | 0.155 |
| 356842 | 63 x 2" | 63 | 2 | 38 | 25.7 | 33 | 46 | 75 | 0.265 |
| 356843 | 75 x 2 1/2" | 75 | 2 1/2 | 44 | 30.2 | 39 | 53 | 89 | 0.400 |
| 356844 | 90 x 3" | 90 | 3 | 51 | 33.3 | 47 | 65 | 106 | 0.670 |
| 356845 | 110 x 4" | 110 | 4 | 61 | 39.3 | 57 | 79 | 129 | 1.055 |
