Full Face Table D/E

Full Face Table D/E

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride - unplasticised
  • Pressure rated to 15 bar at 20°C
  • Drilled to BS 10 Table D & E

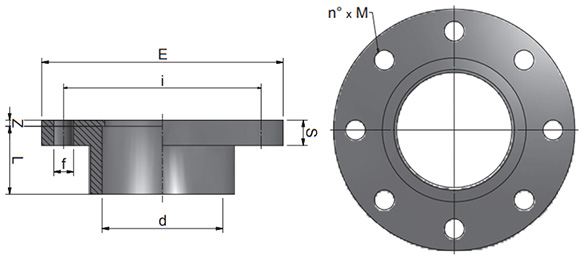

PVC Full Face Flange Diagram

Product Code Nominal Code (inch) L (mm) Z (mm) E (mm) f (mm) I (mm) S (mm) No. of Holes
359784 1/2 17 5 95 14 67 11 4
359785 3/4 20 5 105 14 73 12 4
356739 1 23 5 115 14 83 14 4
356740 1 1/2 32 5 152 18 98 16 4
356741 2 38 5 165 18 115 18 4
356742 3 51 7 200 18 146 20 8
356743 4 63 8 220 18 178 22 8



Useful Info:

This PVC full face flange is designed to connect PVC pipe. Solvent cement is required to join the flange and pipe.

You will also require a gasket and a bolt set for flanging to a valve, a piece of machinery, or another flanged PVC pipe.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
PVCu Full Face Flange Drilled D & E Plain 1/2"
Code
359784
Product Name
PVCu Full Face Flange Drilled D & E Plain 1/2"
List Price
£9.83
You Pay
£2.56
You Save
74%
Qty
PVCu Full Face Flange Drilled D & E Plain 3/4"
Code
359785
Product Name
PVCu Full Face Flange Drilled D & E Plain 3/4"
List Price
£10.00
You Pay
£2.60
You Save
74%
Qty
PVCu Full Face Flange Drilled D & E Plain 1"
Code
356739
Product Name
PVCu Full Face Flange Drilled D & E Plain 1"
List Price
£12.83
You Pay
£3.34
You Save
74%
Qty
PVCu Full Face Flange Drilled D & E Plain 1 1/2"
Code
356740
Product Name
PVCu Full Face Flange Drilled D & E Plain 1 1/2"
List Price
£17.82
You Pay
£4.63
You Save
74%
Qty
PVCu Full Face Flange Drilled D & E Plain 2"
Code
356741
Product Name
PVCu Full Face Flange Drilled D & E Plain 2"
List Price
£23.41
You Pay
£6.09
You Save
74%
Qty
PVCu Full Face Flange Drilled D & E Plain 3"
Code
356742
Product Name
PVCu Full Face Flange Drilled D & E Plain 3"
List Price
£42.21
You Pay
£10.97
You Save
74%
Qty
PVCu Full Face Flange Drilled E Plain 4"
Code
356743
Product Name
PVCu Full Face Flange Drilled E Plain 4"
List Price
£58.56
You Pay
£15.23
You Save
74%
Qty
7 products
