Full Face PN10/16 Threaded

Full Face PN10/16 Threaded

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride - unplasticised
  • Pressure rated to 12 bar at 20°C
  • Drilled to BS EN1029-1 (formerly known as BS 4504) PN10/16

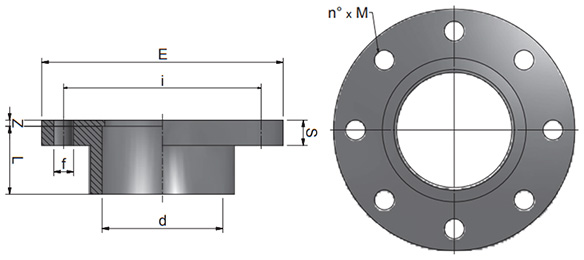

PVC Full Face Flange Diagram

Product Code Nominal Size (inch) L (mm) Z (mm) E (mm) f (mm) I (mm) S (mm) No. of Holes
359812 1/2 15 5 95 14 65 8 4
359813 3/4 18 5 105 14 75 9 4
359814 1 19 5 115 14 85 16 4
359815 1 1/4 21 5 142 18 100 17 4
359816 1 1/2 21 5 152 18 110 17 4
359817 2 26 5 165 18 125 20 4
359818 2 1/2 30 6 185 18 145 22 4
359819 3 33 7 200 18 160 22 8
359820 4 40 8 220 18 180 23 8



Useful Info:

This PVC full face flange is designed to join threaded Class 7 PVC pipe.

You will also require a gasket and a bolt set for flanging to a valve, a piece of machinery, or another flanged PVC pipe.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
