PVC Full Face PN10/16
Technical Specification
- Material: Unplasticised Polyvinyl Chloride (PVCu)
- Sizes: 1/2" to 4"
- Pressure rating: 15 bar
- Temperature range: 5°C to 60°C
- Flange Standard: PN10/16
- Connection type: Solvent Weld/Bolted Flange
- Colour: Grey
- Standards:
- WRAS approved
- BSI Kitemark-certified
Description
This full face flange is designed to be solvent-welded directly onto PVC pipe, creating a robust flanged connection suitable for PN10 and PN16 rated systems. The full face design allows for even gasket compression across the entire sealing surface, helping to achieve a reliable, leak-free joint when correctly installed with a gasket and bolt set.
Manufactured from high-quality PVCu, the flange offers excellent resistance to corrosion, chemicals, and scale build-up, making it well-suited to demanding industrial environments. Once solvent-welded, it forms a permanent connection that can be easily bolted to valves, pumps, or other flanged equipment. Common applications include water treatment, chemical processing, manufacturing, and general industrial pipework where dependable pressure-rated flanged joints are required.
For more information, please visit our PVCu Pressure Pipe Guide!
Key Features & Benefits
- PN10 / PN16 rated: Suitable for a wide range of pressure applications, size and temperature dependent.
- Full face design: Ensures uniform gasket compression for improved sealing performance.
- Solvent weld connection: Creates a strong, permanent joint to PVC pipe.
- PVCu construction: Corrosion-resistant and suitable for aggressive media.
- Industrial versatility: Ideal for commercial, process, and industrial pipework systems.
Dimensions

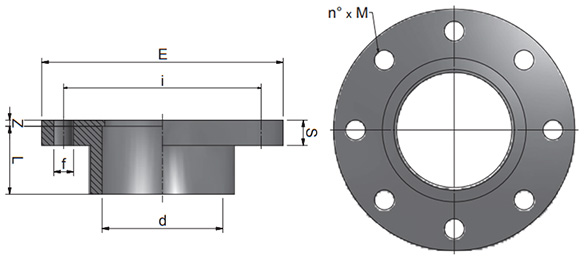

| SKU | Nominal Size (inch) | L (mm) | i (mm) | f (mm) | S (mm) | Z (mm) | E (mm) | n° x M |
| 356767 | 1/2 | 16 | 65 | 14 | 11 | 4.5 | 95 | 4 x M12 |
| 356768 | 3/4 | 19 | 75 | 14 | 12 | 4.5 | 105 | 4 x M12 |
| 356769 | 1 | 22 | 85 | 14 | 14 | 4.5 | 115 | 4 x M12 |
| 356770 | 1 1/4 | 26 | 100 | 18 | 15 | 4.5 | 142 | 4 x M16 |
| 356771 | 1 1/2 | 31 | 110 | 18 | 16 | 4.5 | 152 | 4 x M16 |
| 356772 | 2 | 38 | 125 | 18 | 20 | 5 | 165 | 4 x M16 |
| 356773 | 2 1/2 | 44 | 145 | 18 | 19 | 6 | 185 | 4 x M16 |
| 356774 | 3 | 51 | 160 | 18 | 22 | 7 | 200 | 8 x M16 |
| 356775 | 4 | 63 | 180 | 18 | 23 | 8 | 220 | 8 x M16 |
