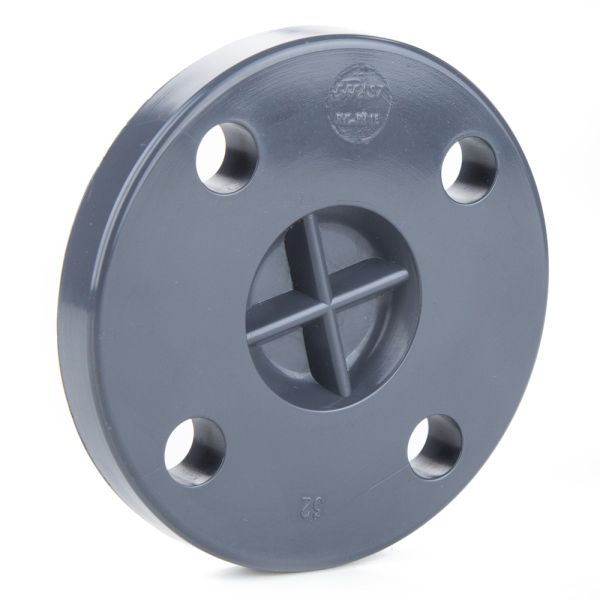

Blanking Flange Table D/E

Blanking Flange Table D/E

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride - unplasticised
  • Pressure rated to 15 bar (1/2" to 2"), 10 bar (3" to 4"), 6 bar (6"), at 20°C
  • Drilled to BS 10 Table D & E

PVC Blanking Flange Diagram

Product Code Nominal Size (inch) Table E (mm) S (mm) I (mm) f (mm) No. of Holes
374129 1/2 D / E 95 11 67 14 4
374130 3/4 D / E 105 12 73 14 4
374131 1 D / E 115 14 83 14 4
374132 1 1/4 D / E 142 15 88 18 4
374133 1 1/2 D / E 152 16 98 18 4
374134 2 D / E 165 18 115 18 4
374135 3 D / E 200 20 146 18 4
374136 4 D 220 22 178 18 4
374137 4 E 220 22 178 18 8
374138 6 D / E 285 28 235 22 8



Useful Info:

This PVC blanking flange is used to bolt off a section of pipework. Bolt sets are also available.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
PVCu Blanking Flange Drilled D & E 1/2"
Code
374129
Product Name
PVCu Blanking Flange Drilled D & E 1/2"
List Price
£65.69
You Pay
£13.79
You Save
79%
Qty
PVCu Blanking Flange Drilled D & E 3/4"
Code
374130
Product Name
PVCu Blanking Flange Drilled D & E 3/4"
List Price
£74.74
You Pay
£15.70
You Save
79%
Qty
PVCu Blanking Flange Drilled D & E 1"
Code
374131
Product Name
PVCu Blanking Flange Drilled D & E 1"
List Price
£81.24
You Pay
£17.06
You Save
79%
Qty
PVCu Blanking Flange Drilled D & E 1 1/4"
Code
374132
Product Name
PVCu Blanking Flange Drilled D & E 1 1/4"
List Price
£85.54
You Pay
£17.96
You Save
79%
Qty
PVCu Blanking Flange Drilled D & E 1 1/2"
Code
374133
Product Name
PVCu Blanking Flange Drilled D & E 1 1/2"
List Price
£92.47
You Pay
£19.42
You Save
79%
Qty
PVCu Blanking Flange Drilled D & E 2"
Code
374134
Product Name
PVCu Blanking Flange Drilled D & E 2"
List Price
£103.54
You Pay
£21.74
You Save
79%
Qty
PVCu Blanking Flange Drilled D & E 3"
Code
374135
Product Name
PVCu Blanking Flange Drilled D & E 3"
List Price
£182.96
You Pay
£38.42
You Save
79%
Qty
PVCu Blanking Flange Drilled D 4"
Code
374136
Product Name
PVCu Blanking Flange Drilled D 4"
List Price
£235.39
You Pay
£49.43
You Save
79%
Qty
PVCu Blanking Flange Drilled E 4"
Code
374137
Product Name
PVCu Blanking Flange Drilled E 4"
List Price
£235.39
You Pay
£49.43
You Save
79%
Qty
PVCu Blanking Flange Drilled D & E 6"
Code
374138
Product Name
PVCu Blanking Flange Drilled D & E 6"
List Price
£413.23
You Pay
£86.78
You Save
79%
Qty
10 products
