Blanking Flange PN10/16

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: polyvinyl chloride - unplasticised
  • Pressure rated to 15 bar (1/2" to 2"), 10 bar (3" to 4"), 6 bar (6"), at 20°C
  • Drilled to BS EN1029-1 (formerly known as BS 4504) PN10/16

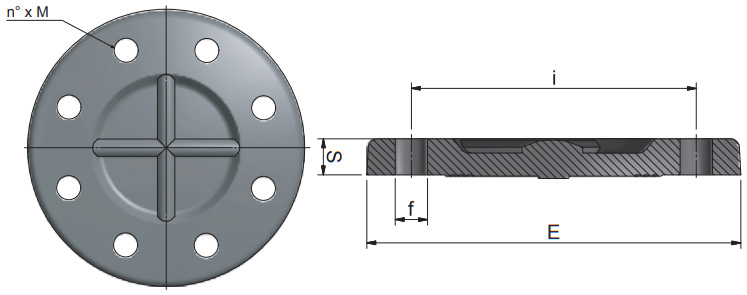

PVC Blanking Flange Diagram

Product Code Nominal Size (inch) Nominal Size (mm) E (mm) S (mm) I (mm) f (mm) No. of Holes
356726 1/2 20 95 11 65 14 4
356727 3/4 25 105 12 75 14 4
356728 1 32 115 14 85 14 4
356729 1 1/4 40 142 15 100 18 4
356730 1 1/2 50 152 16 110 18 4
356731 2 63 165 18 125 18 4
356732 2 1/2 75 185 19 145 18 4
356733 3 90 200 20 160 18 8
356734 4 110 220 22 180 18 8
356735 - 125 230 24 190 18 8
356736 5 140 250 26 210 18 8
356737 6 160 285 28 240 22 8
356738 - 200 340 30 295 22 8
356739 8 225 340 30 295 22 8



Useful Info:

This PVC blanking flange is used to bolt off a section of pipework. Bolt sets are also available.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!
