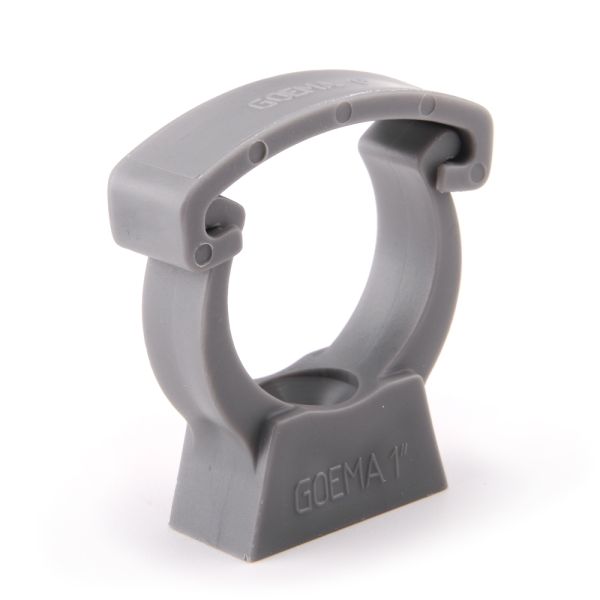

Pipe Bracket
Useful Information
Horizontal support centres for PVC pipe, based on pipe carrying water at temperatures in °C.
Underground installation is straightforward but detailed advice is available from our technical sales department.
Valves, heavy flanges and any ancillary equipment should be independently supported. They can also be used as anchor points to control expansion.
| Material | Polypropylene |
| Fixing hole diameter | 5.5mm |
| Notes | Includes safety clip |
| PVC Pipe Size (inch) | Bracket spacing (m) at: | |
| 20°C | 50°C | |
| 1/2 | 0.9 | - |
| 3/4 | 1.0 | 0.55 |
| 1 | 1.1 | 0.6 |
| 1 1/4 | 1.2 | 0.7 |
| 1 1/2 | 1.3 | 0.8 |
| 2 | 1.4 | 0.9 |
| 2 1/2 | 1.5 | 1.0 |
| 3 | 1.6 | 1.2 |
| 4 | 1.9 | 1.3 |
| 5 | 2.2 | 1.65 |
| 6 | 2.3 | 1.75 |
| 8 | 2.6 | 2.0 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
