Union Plain x SS M Thread FPM
Useful Information
Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

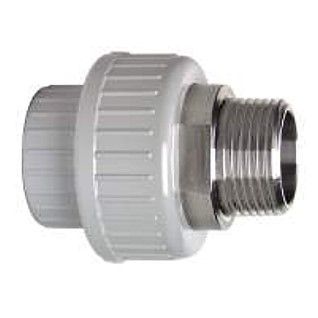

These Unions are plain x stainless steel tapered male thread and come with FPM O-ring gaskets.
| Manufacturer | Georg Fischer |
| Temperature Range | 0°C to 80°C |
| Pressure Rating |
16 Bar |
| Size Range | 16mm x 3/8" - 63mm x 2" |
| Product Code | d (mm) | R (inch) | z (mm) | D (mm) | L (mm) | L1 (mm) | L2 (mm) | s (mm) | G (inch) | Weight (kg) |
| 398738 | 16 | 3/8 | 40 | 35 | 54 | 30 | 24 | 19 | 3/4 | 0.073 |
| 398739 | 20 | 1/2 | 44 | 43 | 60 | 34 | 26 | 24 | 1 | 0.120 |
| 398740 | 25 | 3/4 | 46 | 51 | 65 | 36 | 29 | 32 | 1 1/4 | 0.174 |
| 398741 | 32 | 1 | 50 | 58 | 72 | 40 | 33 | 37 | 1 1/2 | 0.259 |
| 398742 | 40 | 1 1/4 | 58 | 74 | 84 | 46 | 39 | 48 | 2 | 0.482 |
| 398743 | 50 | 1 1/2 | 62 | 83 | 93 | 48 | 46 | 54 | 2 1/4 | 0.535 |
| 398744 | 63 | 2 | 73 | 100 | 111 | 55 | 58 | 69 | 2 3/4 | 0.982 |
Â
