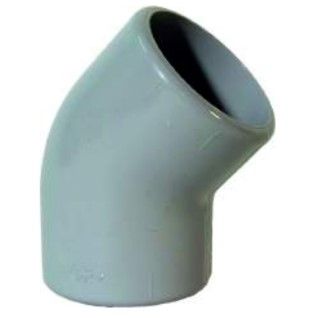

Elbow 45° Plain

Loading...
Useful Information

Our range of Georg Fischer PVC-C fittings are manufactured from Chlorinated Polyvinylchloride and can be used in applications where exceptional chemical resistance is required.

Manufacturer Georg Fischer
Temperature Range 0°C to 80°C
Pressure Rating 16 Bar
Size Range 16 - 225mm

GF-elbow-45-diagram

Product Code d (mm) z (mm) D (mm) L (mm) Weight (kg)
398538 16 5 21 19 0.008
398539 20 5 25 21 0.011
398540 25 6 31 25 0.021
398541 32 8 40 30 0.037
398542 40 10 49 36 0.063
398543 50 12 61 43 0.110
398544 63 14 76 52 0.207
398545 75 17 88 61 0.323
398546 90 20 106 71 0.526
398547 110 28 137 89 0.782
398548 160 36 185 122 2.384
398549 225 49 250 168 4.833




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
Code Product Name List Price You Save You Pay Quantity
398538 GF PVC-C Elbow 45° Plain 16mm £10.92 15%
You Pay:  £9.28
398539 GF PVC-C Elbow 45° Plain 20mm £11.64 15%
You Pay:  £9.89
398540 GF PVC-C Elbow 45° Plain 25mm £12.51 15%
You Pay:  £10.63
398541 GF PVC-C Elbow 45° Plain 32mm £16.27 15%
You Pay:  £13.83
398542 GF PVC-C Elbow 45° Plain 40mm £23.36 15%
You Pay:  £19.86
398543 GF PVC-C Elbow 45° Plain 50mm £28.34 15%
You Pay:  £24.09
398544 GF PVC-C Elbow 45° Plain 63mm £43.57 15%
You Pay:  £37.03
398545 GF PVC-C Elbow 45° Plain 75mm £100.15 15%
You Pay:  £85.13
398546 GF PVC-C Elbow 45° Plain 90mm £149.11 15%
You Pay:  £126.74
398547 GF PVC-C Elbow 45° Plain 110mm £242.00 15%
You Pay:  £205.70
398548 GF PVC-C Elbow 45° Plain 160mm £549.81 15%
You Pay:  £467.34
398549 GF PVC-C Elbow 45° Plain 225mm £1,186.73 15%
You Pay:  £1,008.72
