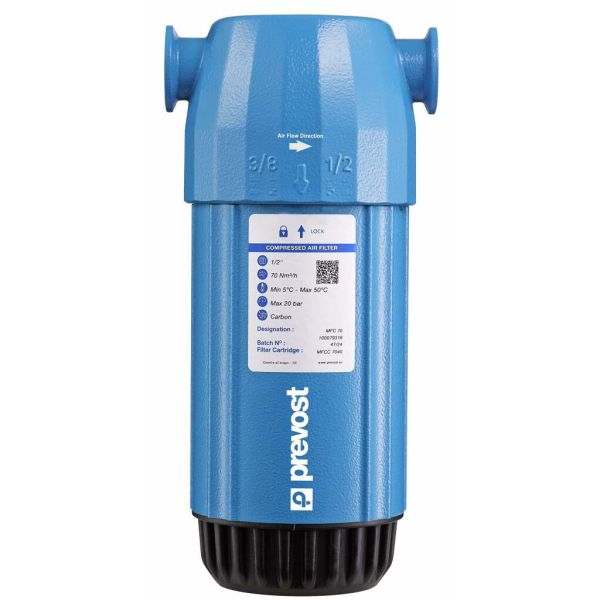

This activated carbon filtration unit provides superior removal of oil vapours and odours from compressed air systems, ensuring cleaner air for sensitive applications. Designed for use with MFCC cartridges, it combines high flow performance with dependable aluminium construction, making it ideal for post-filtration use in industrial, laboratory, and food-grade environments.
Key Features & Benefits
Activated Carbon Filtration: Effectively eliminates oil vapours, hydrocarbons, and odours, enhancing air quality for critical processes.
Consistent High Flow: Delivers a strong minimum flow rate of 916.66 l/min at 7 bar with low pressure loss (ΔP = 0.08 bar), supporting efficient system output.
Sturdy Aluminium Housing: Made from corrosion-resistant aluminium for durability and longevity in demanding operating conditions.
Precise Compatibility: Built for use with MFCC 5532 activated carbon cartridges, ensuring secure fit and optimal filtration performance.
Moderate Temperature Range: Operates effectively between 5 °C and 50 °C, suitable for indoor and controlled environments.
Pressure Tolerance: Withstands output pressures up to 20 bar, providing reliable performance in medium to high-pressure air systems.
SKU
Prevost Code

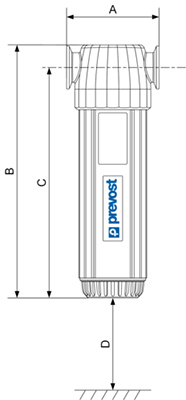

A (mm)
B (mm)
C (mm)
D (mm)
Female Thread (G")
Flow Rate At 6 Bar (m³/h)
Flow rate l/min at 7 bar (ΔP = 0.08 bar)
488912
MFC 55
90
252
230
19
1/2
55
916.66
488913
MFC 70
128
273
250
32
1/2
70
1166.66
488914
MFC 100
128
303
279
32
1/2
100
1666.66
488915
MFC 150
140
370
335
31
3/4
150
2500
488916
MFC 225
140
398
365
31
1
225
3750
488917
MFC 300
140
474
432
31
1 1/2
300
5000.00
488918
MFC 400
140
564
522
31
1 1/2
400
6666.66
488919
MFC 500
151
511
465
25
2
500
8333.33
488920
MFC 800
151
696
650
25
2
800
13333.33
488921
MFC 1550
240
707
660
25
2 1/2
1500
25833.33
