Variable Flow Meter Polyamid
Useful Information
PROGEF Standard PP, from Georg Fischer, is manufactured from a polypropylene homopolymer and has been shown to offer excellent resistance against stress fracture, impact, abrasion and chemicals and is therefore suited for use in industrial applications where chemical production and distribution is required.

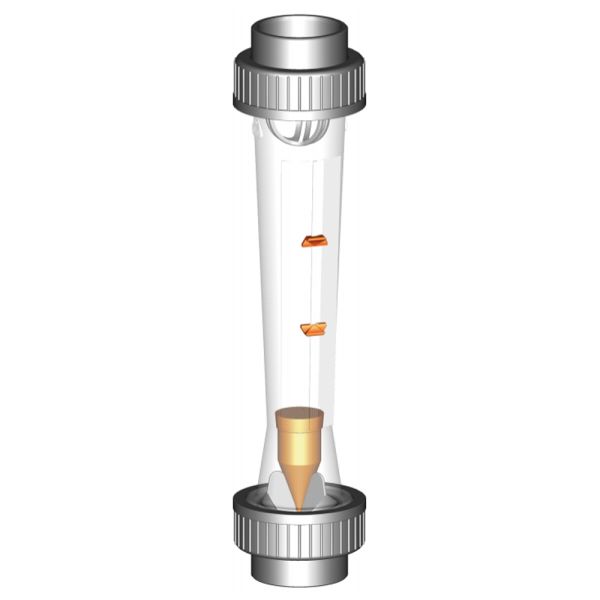

Our variable area flow meters have tapered polyamid tubes, metric PP-H socket fusion ends, epdm o-rings and a PVDF float without magnet.
| Material | PP-H |
| Temperature Range | 0°C to 80°C |
| Pressure Rating | 16 Bar |
| Size Range | 32 - 63mm |
| Scale Range | 50 - 10000 l/min |
| Product Code | Scale Range (l/min) | d (mm) | DN (mm) | D (mm) | L (mm) | L1 (mm) | L2 (mm) | Weight (kg) |
| 397509 | 50-500 | 32 | 25 | 58 | 385 | 341 | 335 | 0.450 |
| 397511 | 600-6000 | 50 | 40 | 83 | 403 | 341 | 335 | 0.900 |
| 397513 | 1000-10000 | 63 | 50 | 101 | 417 | 341 | 335 | 1.450 |
Â
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
