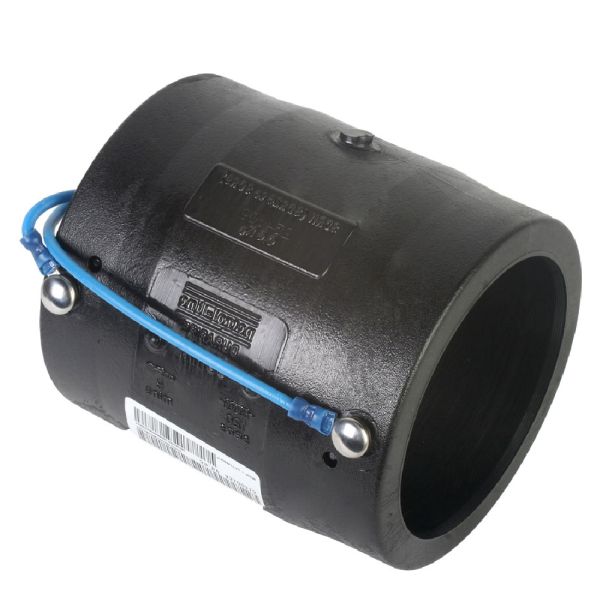

Primary Coupling with Leads
Useful Information
Key Features / Tech Specs:
- Material: Polyethylene
- Internal pipe coupling with leads
- Sizes available: 32mm to 110mm
- Pressure rated to 10 bar
- 39.5v
| Product Code | *Outer Diameter (mm) | L (mm) | d1 (mm) | d2 (mm) | z (mm) |
| 383438 | 32 | 83 | 44 | 26 | 2 |
| 383439 | 50 | 98 | 65 | 36.5 | 3 |
| 383440 | 63 | 111 | 78 | 43 | 3 |
| 383441 | 90 | 127 | 119 | 61.5 | 3 |
| 383442 | 110 | 135 | 141.5 | 73 | 3 |
*The outer diameter of this pipe denotes the coupling to use with the internal pipe of the "Pipe-in-Pipe" system.
Useful Info:
This fusion coupling is used to connect two pieces of PLX pipe of the same diameter.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
