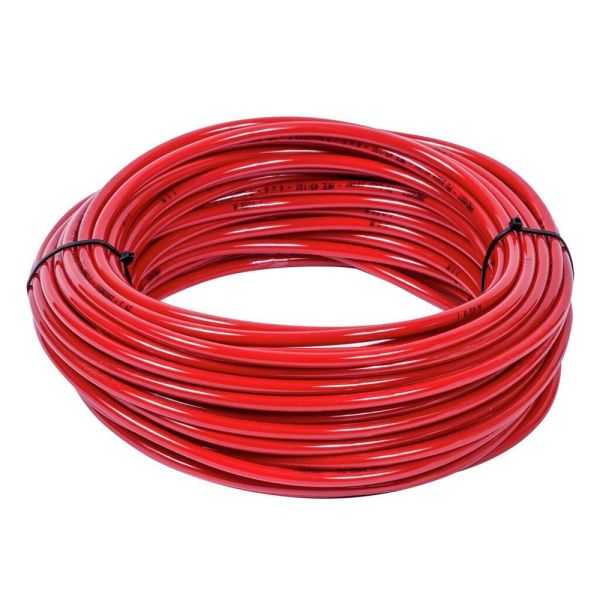

Polyamide Red Tube
Useful Information
Key Features / Tech Specs / Dimensions:
- Manufacturer: Prevost
- Material: Polyamide
- Colour: Red
- Temperature: -20° to + 80°C
| Product Code | ID/OD (mm) | Mini Bend Radius (mm) | Max Operating Pressure @ 20°C (BAR) |
| 407115 | 2 x 4 | 25 | 30 |
| 407121 | 2.7 x 4 | 30 | 15 |
| 407130 | 4 x 6 | 35 | 27 |
| 407136 | 6 x 8 | 55 | 19 |
| 407142 | 8 x 10 | 90 | 15 |
| 407157 | 2 x 4 | 25 | 30 |
| 407163 | 2.7 x 4 | 30 | 15 |
| 407172 | 4 x 6 | 35 | 27 |
| 407178 | 6 x 8 | 55 | 19 |
| 407184 | 8 x 10 | 90 | 15 |
| 407199 | 8 x 10 | 90 | 15 |
| 407205 | 6 x 8 | 55 | 19 |
| 407211 | 2.7 x 4 | 30 | 15 |
| 407217 | 4 x 6 | 35 | 27 |
