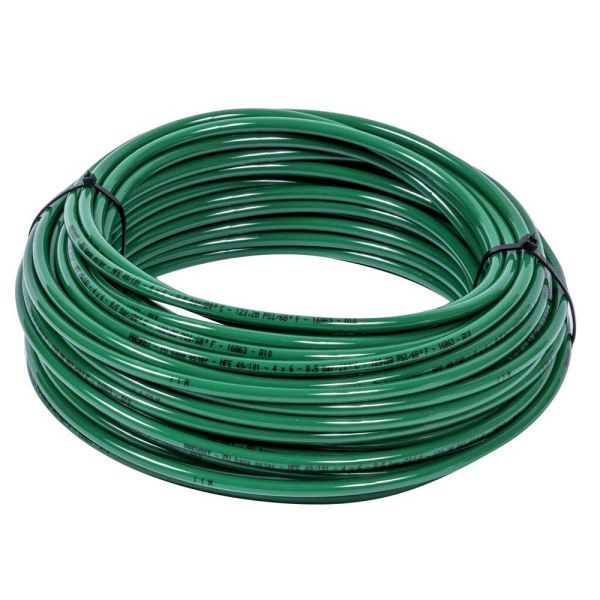

Polyamide Green Tube
Useful Information
Key Features / Tech Specs / Dimensions:
- Manufacturer: Prevost
- Material: Polyamide
- Colour: Green
- Temperature: -20° to + 80°C
| Product Code | ID/OD (mm) | Mini Bend Radius (mm) | Max Operating Pressure @ 20°C (BAR) |
| 407116 | 2 x 4 | 25 | 30 |
| 407122 | 2.7 x 4 | 30 | 15 |
| 407131 | 4 x 6 | 35 | 27 |
| 407137 | 6 x 8 | 55 | 19 |
| 407143 | 8 x 10 | 90 | 15 |
| 407158 | 2 x 4 | 25 | 30 |
| 407164 | 2.7 x 4 | 30 | 15 |
| 407173 | 4 x 6 | 35 | 27 |
| 407179 | 6 x 8 | 55 | 19 |
| 407185 | 8 x 10 | 90 | 15 |
| 407200 | 8 x 10 | 90 | 15 |
| 407206 | 6 x 8 | 55 | 19 |
| 407212 | 2.7 x 4 | 30 | 15 |
| 407218 | 4 x 6 | 35 | 27 |
