Case Material: Galvanised steel with UV-resistant polyester coating
Auto Rewind: System to retract the hose automatically
Mounting Options: Wall or ceiling
Adjustable Stop: Holds the hose at the desired length
Inlet Hose: 1m length
Description
Designed to meet the needs of high-demand industrial environments, this extra-large hose reel supports larger air volume applications with ease. Its heavy-duty construction and thick rubber hose offer outstanding performance and resilience in challenging conditions. The automatic rewind system ensures safe and tidy hose storage, while the mounting bracket allows flexible installation in any orientation. Ideal for sectors where high flow rate and durability are essential, it promotes efficient hose handling and workplace safety.
Key Features
Safety Spring Mechanism: Provides a controlled hose return, preventing rapid retraction that could cause injury or damage.
Anti-Whiplash Coupling: Allows for the safe decompression and disconnection of pneumatic tools in a single movement, preventing hose whip and potential injuries.
Locking System: Holds the hose at the desired length, allowing users to work comfortably without hose pullback.
Anti-Twist Pipe Protectors: Prevents the hose from twisting, ensuring smooth operation and extending the hose's lifespan.
Limit Switch: Enhances user control by limiting the hose retraction point.
Galvanised Steel Housing: Features a UV-resistant polyester-based electrostatic powder coating that protects against corrosion and wear, ensuring durability even in harsh environments.
360-Degree Rotating Air Inlet: Connected via a 1-metre supply hose (included), the air inlet is protected by a plastic cover and allows for flexible hose movement.

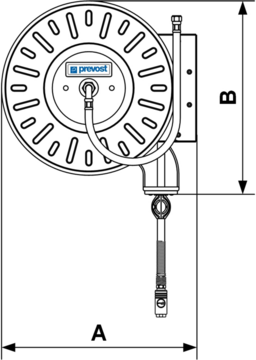

Materials & Dimensions
Product Code
Prevost Code
ID/OD (mm)
Length (m)
Coupling
Flow Rate (l/min)
Weight (kg)
A (mm)
B (mm)
407042
DLO 1330ES
13 x 20
30
ESI 11EB (Euro)
850
40.5
615
610
407043
DLO 1625ES
16 x 23
25
ESI 11EB (Euro)
1700
39.5
615
610
407044
DLO 1920ES
19 x 27
20
ESI 11EB (Euro)
2400
42
615
610
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
