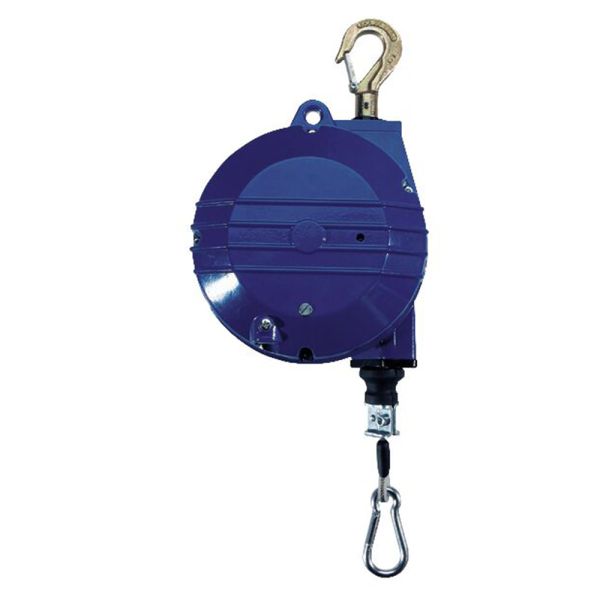

DP Series Balance Reel
Useful Information
Key Features / Tech Specs / Dimensions:
- Manufacturer: Prevost
- Material: Aluminium Cable, Stainless Steel
- Temperature: +5°C to +60°C
- Applications: Mounting Decks, Assembling, Packaging
| Product Code | Cable Length (mm) | Min. load (kg) | Max load (kg) | Weight (kg) |
| 407827 | 2 | 4 | 7 | 4.94 |
| 407828 | 2 | 7 | 10 | 5.3 |
| 407829 | 2 | 10 | 14 | 5.67 |
| 407830 | 2 | 14 | 18 | 6.26 |
| 407831 | 2 | 18 | 22 | 5.89 |
| 407832 | 2 | 22 | 25 | 6.53 |
| Product Code | A (mm) | B (mm) |
| 407827 | 551 | 140 |
| 407828 | 551 | 140 |
| 407829 | 551 | 140 |
| 407830 | 551 | 140 |
| 407831 | 551 | 140 |
| 407832 | 551 | 140 |
