Installation Type: Clamp-on flange with vertical threaded outlet
Water Use: Not suitable for water
Description
This straight tapping flange offers a vertical BSP female outlet for branching compressed air lines from existing PPS aluminium piping without disassembly. Its clamp-on design ensures quick, secure mounting and provides a direct outlet for threaded fittings. Built from corrosion-resistant aluminium, it supports robust sealing and system integration in demanding industrial environments.
Key Features & Benefits
Straight Vertical Outlet: Ideal for vertical threaded take-offs in existing pipe runs.
Clamp-On Assembly: Enables fast retrofit installation without cutting or dismantling.
BSP Female Thread: Compatible with valves, gauges, and other threaded components.
Strong Aluminium Build: Cast from EN AB 46100 for excellent durability and corrosion resistance.
Leak-Tight Seal: Integrated sealing system ensures reliable performance under pressure.
ATEX Approved: Certified for use in Zones 1, 2, 21, and 22 (not for Zones 0 or 20).
Product Code

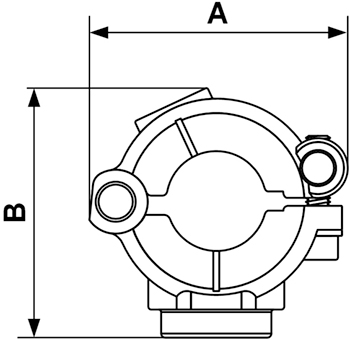

A (mm)
B (mm)
406561
PPS1 BFT2512
25
1/2
406562
PPS1 BFT2527
25
3/4
406563
PPS1 BFT3212
32
1/2
406564
PPS1 BFT3227
32
3/4
406565
PPS1 BFT4012
40
1/2
406566
PPS1 BFT4027
40
3/4
406567
PPS1 BFT4034
40
1
406568
PPS1 BFT5012
50
1/2
406569
PPS1 BFT5027
50
3/4
406570
PPS1 BFT5034
50
1
406571
PPS1 BFT6312
63
1/2
406572
PPS1 BFT6327
63
3/4
406573
PPS1 BFT6334
63
1
406574
PPS1 BFT6342
63
1 1/4
406575
PPS1 BFT8012
80
1/2
406576
PPS1 BFT8027
80
3/4
406577
PPS1 BFT8034
80
1
406578
PPS1 BFT8042
80
1 1/4
484243
PPS1 BFT10027
159
138
484244
PPS1 BFT10034
159
138
484245
PPS1 BFT10049
159
138
