Connection: Requires a connector for joining on all ends
Description

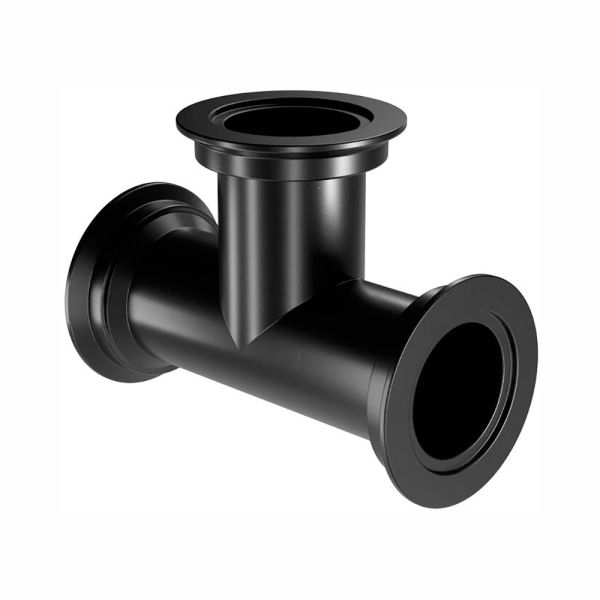

The Prevost CC Concept Triple End Tee is a high-performance aluminium fitting designed to support three-way branching in compressed air networks. Its innovative CC Concept allows direct compact connection between three sections of pipework, making it ideal for installations where space efficiency and streamlined layouts are essential. This fitting is compatible with aluminium pipes ranging from 50 mm to 160 mm in outer diameter and supports systems operating at pressures up to 16 bar. Designed for ease of installation and lasting reliability, it forms a key part of modular, scalable compressed air systems.
Key Features & Benefits
Compact CC Concept Design: Enables space-saving, direct pipe-to-pipe connections without requiring bulky assemblies.
Triple Outlet Capability: Allows seamless three-way distribution, enhancing layout flexibility and system expandability.
100% Aluminium Construction: Lightweight yet robust, offering high resistance to corrosion and mechanical stress.
Quick and Secure Assembly: Uses the PPS Grip Concept for a tight, leak-free seal with minimal pressure drop.
Modular and Scalable: Easily integrates into existing PPS networks, supporting future growth or reconfiguration.
Wide Operating Range: Suitable for demanding environments with temperature fluctuations from -20°C to 80°C.
Connector Use Required: Must be paired with compatible CC Concept connectors to ensure secure and reliable integration with the PPS system.

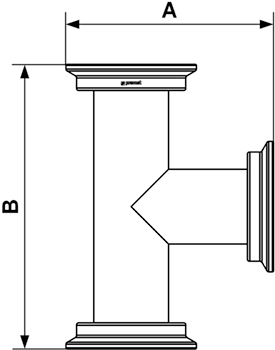

SKU
Prevost Code
A (mm)
B (mm)
Size (mm)
Weight (kg)
489831
PPS1 TCCC50
150
215
50
1
489832
PPS1 TCCC63
174
240
63
1,72
489833
PPS1 TCCC80
190
260
80
2,5
489834
PPS1 TCCC100
230
310
100
3
489835
PPS1 TCCC160
-
-
160
-
