Connection: Requires a connector for joining on both ends
Description
This high-performance elbow fitting from the Prevost CC Concept range enables a clean and secure 90° directional change in compressed air networks. Engineered for equal pipe diameters, it simplifies layout planning in compressor rooms or compact installations without compromising on flow efficiency or safety.
Key Features & Benefits
Equal-End Compatibility: Both ends have the cc concept design, meaning two connectors will be needed to join either pipe or another fitting, unless a connector is already attached.
Optimised for Compressor Rooms: The compact, space-saving profile makes it ideal for tight mechanical areas, where efficient use of space and streamlined routing are critical.
High-Strength Aluminium Body: Manufactured from lightweight yet durable aluminium, offering excellent resistance to corrosion, mechanical stress, and long-term wear in industrial environments.
Secure, Leak-Free Connection: Integrates with the PPS Grip Concept system, ensuring a tight, reliable seal with minimal pressure loss and no need for welding or threading.
Wide Operating Range: Withstands up to 16 bar of pressure and operates effectively between -20 °C and 80 °C, making it suitable for demanding workshop or factory settings.
Maintenance-Free Design: Once installed, the elbow requires no servicing, supporting uninterrupted operation and reduced maintenance costs over time.

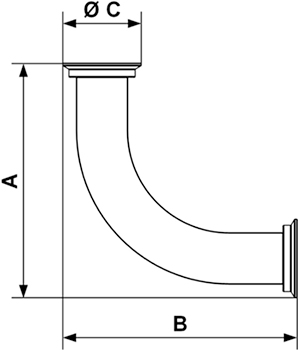

SKU
Prevost Code
A (mm)
B (mm)
C (mm)
Size (mm)
Weight (kg)
489817
PPS1 9CCC50
255
255
90
50
1
489818
PPS1 9CCC63
270
270
110
63
1,92
489819
PPS1 9CCC80
350
350
125
80
2,172
489820
PPS1 9CCC100
460
460
154
100
4,21
489821
PPS1 9CCC160
300
300
300
160
-
