Connection: Requires a connector for joining on one end
Description
The Prevost CC Concept Elbow 90° is a robust aluminium fitting designed to create a precise right-angle turn in compressed air pipe systems. Engineered for use with 50 mm to 100 mm OD pipes, it allows secure and efficient directional changes in confined areas such as compressor rooms. With high pressure and temperature resistance, this elbow fitting ensures durability and optimal performance in demanding industrial environments.
Key Features & Benefits
Accurate 90° Direction Change: Ideal for routing pipework around corners while maintaining a consistent flow.
Space-Efficient Configuration: Perfect for installations in tight or restricted spaces, such as compressor rooms or mechanical enclosures.
Strong Aluminium Construction:Made from high-grade aluminium for corrosion resistance and long-lasting reliability.
Wide Pipe Compatibility:Designed to connect pipes ranging from 50 mm to 100 mm outer diameter, offering flexibility for different system sizes.
High Pressure and Temperature Tolerance:Operates efficiently under pressures up to 16 bar and temperatures from -20 °C to 80 °C.

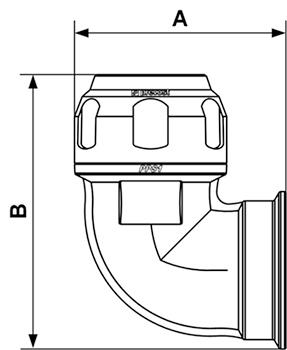

SKU
Prevost Code
A (mm)
B (mm)
Size OD (mm)
Weight (kg)
489813
PPS1 9CC50
116
153
50
0,794
489814
PPS1 9CC63
140
187
63
1,36
489815
PPS1 9CC80
168
218
80
2,04
489816
PPS1 9CC100
207
231
100
3,15
