Prevost CC Concept Cross Connection Female Thread
Technical Specification
- Material: Aluminium
- Female Thread Size: 1/2" to 1 1/2"
- Max. Output Pressure: 16 bar
- Operating Temperature: -20°C to 80°C
- Connection: Aluminium cap compatible
Description
The Prevost CC Concept Cross Connection with Female Thread is a versatile fitting designed for use in compressed air systems built on the PPS1 CC Concept. It features a central female threaded outlet (1/2" to 1 1/2") that allows the connection of tools, gauges, valves, or auxiliary lines directly into your network. Made from high-strength aluminium, this cross fitting is ideal for tight installations requiring multiple directional connections.

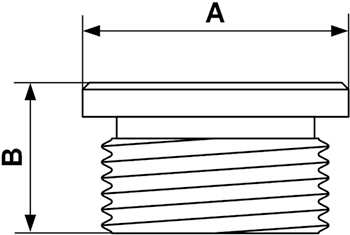

For installations not using the female threaded outlet, an optional aluminium thread cap is available. This accessory securely seals the threaded opening, maintaining the system's airtight integrity while preserving the option for future expansion.
Key Features & Benefits
- Multi-Point Connection: Enables perpendicular branching in compressed air pipelines, improving layout flexibility and compact routing.
- Female Threaded Outlet: Built-in thread allows for quick connection of accessories such as gauges, safety valves, or secondary lines.
- Optional Thread Cap Accessory: Close off unused threaded ports neatly and securely with an aluminium cap (sold separately), avoiding leaks and preserving system pressure.
- Durable Aluminium Construction: Lightweight yet strong, offering excellent corrosion resistance and a long service life in industrial environments.
- Wide Operating Range: Handles pressures up to 16 bar and temperatures from -20 °C to 80 °C, suitable for most compressed air system requirements.

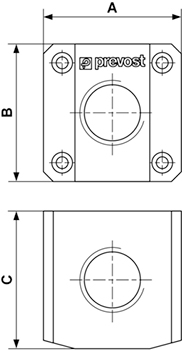

| SKU | Prevost Code | A (mm) | B (mm) | C (mm) | Thread Size (") | Weight (kg) |
| 489836 | PPS1 CR12 | 50 | 50 | 60 | 1/2 | 0,283 |
| 489837 | PPS1 CR27 | - | - | - | 3/4 | 0,318 |
| 489838 | PPS1 CR34 | 70 | 70 | 70 | 1 | 0,608 |
| 489839 | PPS1 CR49 | 90 | 90 | 80 | 1 1/2 | 0,948 |
| 489845 | PPS1 A712 | 26 | 18 | - | 1/2 | |
| 489846 | PPS1 A727 | - | - | - | 3/4 | 0,029 |
| 489847 | PPS1 A734 | 39 | 22 | - | 1 | |
| 489848 | PPS1 A749 | 54 | 26.5 | - | 1 1/2 |
