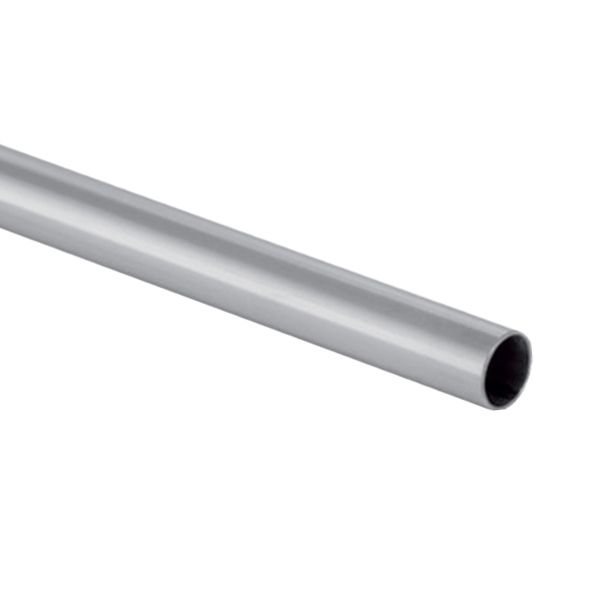

Geberit Mapress Stainless Steel Pipe
Useful Information
Technical Specification
- Material: CrNiMo steel 1.4401(EN 10088)
- Operating Temperature: 0–100 °C (For cold and hot potable water)
- Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
- Surface Roughness: 1.5 µm
- Thermal Expansion: 0.0165 mm/(m·K)
- Installation: Suitable for surface-mounted and concealed installations
- Thermal Conductivity: pipe 15 W/(m·K)
- Specific Thermal capacity: 500 J/(kg·K)
Description
The Geberit Mapress Stainless Steel Pipe is a versatile and reliable piping system designed for various applications that require stringent hygiene standards, high resistance to corrosion, and the ability to withstand high temperatures and pressures. This pipe system is widely used in drinking water installations, industrial buildings, and areas with demanding hygiene requirements. It is also approved for use in fire protection systems such as ‘wet’, ‘wet/dry’, and ‘dry’ sprinkler systems, offering a highly dependable solution across multiple sectors.
Key Features
- High Molybdenum Content: With a minimum molybdenum content of 2.3%, the Geberit Mapress Stainless Steel system offers superior corrosion resistance and excellent hygiene properties, exceeding standard industry levels.
- Hygienic and Safe: The system allows for thermal and chemical disinfection, ideal for situations where hygiene is paramount. Pre-fitted leakproof plugs protect pressing sockets from dust and dirt during installation.
- Versatile Applications: Approved for use in demanding environments, including drinking water systems, industrial applications, and fire protection systems.
- Quick and Simple Installation: The pressing technology ensures quick and easy assembly, reducing labour costs and the need for consumables like oxygen or gas. The use of indicator rings and plugs makes it easy to distinguish between different materials and systems.
- Comprehensive System: With around 500 fittings and adaptors, it offers flexibility and compatibility with other Geberit systems, including the MasterFix adaptor for fast, tool-free connections.
| SKU | Article Number | DN | Outer Diameter (mm) | Inner Diameter (mm) | Wall Thickness (mm) | Length (m) | Weight (kg) |
| 488583 | 15701-CUT | 12 | 15 | 13 | 1 | 3 | 1.053 |
| 487779 | 15701 | 12 | 15 | 13 | 1 | 6 | 2.106 |
| 488584 | 15700-CUT | 15 | 18 | 16 | 1 | 3 | 1.278 |
| 488585 | 15702-CUT | 20 | 22 | 19.6 | 1.2 | 3 | 1.878 |
| 487781 | 15702 | 20 | 22 | 19.6 | 1.2 | 6 | 3.756 |
| 488586 | 15703-CUT | 25 | 28 | 25.6 | 1.2 | 3 | 2.418 |
| 487782 | 15703 | 25 | 28 | 25.6 | 1.2 | 6 | 4.836 |
| 488587 | 15704-CUT | 32 | 35 | 32 | 1.5 | 3 | 3.780 |
| 487783 | 15704 | 32 | 35 | 32 | 1.5 | 6 | 7.560 |
| 488588 | 15705-CUT | 40 | 42 | 39 | 1.5 | 3 | 4.569 |
| 487784 | 15705 | 40 | 42 | 39 | 1.5 | 6 | 9.138 |
| 488589 | 15706-CUT | 50 | 54 | 51 | 1.5 | 3 | 5.922 |
| 487785 | 15706 | 50 | 54 | 51 | 1.5 | 6 | 11.844 |
| 488590 | 15400-CUT | 65 | 76.1 | 73.1 | 2 | 3 | 11.145 |
| 487786 | 15400 | 65 | 76.1 | 73.1 | 2 | 6 | 22.290 |
| 488591 | 15401-CUT | 80 | 88.9 | 85.9 | 2 | 3 | 13.071 |
| 487787 | 15401 | 80 | 88.9 | 85.9 | 2 | 6 | 26.142 |
| 48592 | 15402-CUT | 100 | 108 | 104 | 2 | 3 | 15.945 |
| 487778 | 15402 | 100 | 108 | 104 | 2 | 6 | 31.890 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
