Operating Temperature: 0–100 °C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar / 1600 kPa (For cold and hot potable water)
Material: CrNiMo Steel 1.4401 (EN 10088)
Molybdenum Content: Minimum 2.3%
Bend Angle: 15°
Applications: Drinking water installations, industrial systems, and sprinkler systems (wet, wet/dry, and dry)
Corrosion Resistance: High resistance due to elevated molybdenum content, ensuring durability in aggressive environments
Indicator Ring: Blue, for easy identification and system compatibility
Description

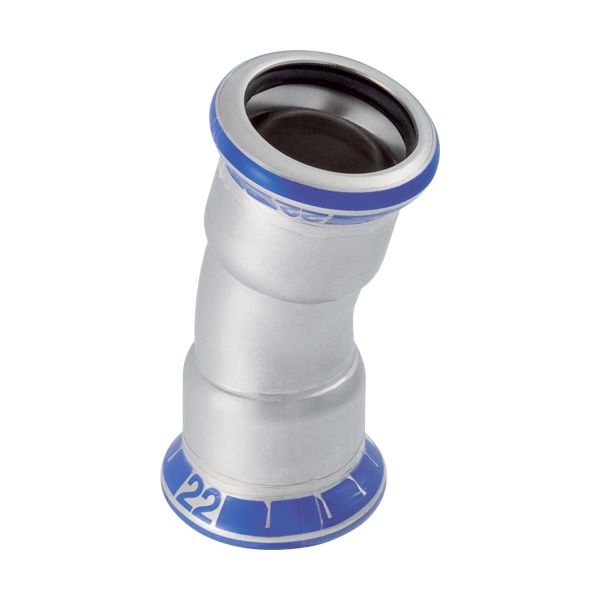

The Geberit Mapress Stainless Steel Elbow 15° is designed for applications where a small directional change in the piping system is required. With a reliable 15° bend, it maintains the system's efficiency while offering exceptional corrosion resistance and hygiene. This fitting is ideal for use in drinking water installations, industrial applications, and systems exposed to high temperatures, pressures, or aggressive liquids. It is also suitable for sprinkler systems, providing a reliable connection in safety-critical installations.
Key Features
High Molybdenum Content: Made from CrNiMo steel 1.4401 with a minimum molybdenum content of 2.3%, providing superior corrosion resistance, especially in aggressive environments.
Wide Range of Applications: Suitable for drinking water installations, industrial environments, and sprinkler systems, including ‘wet’, ‘wet/dry’, and ‘dry’ setups.
Hygienic Design: Ensures compliance with stringent hygiene requirements, and can be used with thermal and chemical disinfection processes if required by regulations.
Leakproof Protection: Delivered with a leakproof plug to safeguard against contamination from dust and dirt during transport and storage, ensuring a clean installation.
Comprehensive System Compatibility: Seamlessly integrates with the full Geberit Mapress Stainless Steel system, offering versatility with adaptors and fittings for various applications.
Easy Identification: Features a blue indicator ring for quick and easy identification of the fitting material during installation.
SKU
Article Number
DN
d
arc
L
Z
487415
36101
12
15 mm
15 °
3 cm
1 cm
487416
36103
20
22 mm
15 °
3.2 cm
1.1 cm
487417
36104
25
28 mm
15 °
3.6 cm
1.3 cm
487418
36105
32
35 mm
15 °
3.2 cm
0.6 cm
487419
36106
40
42 mm
15 °
3.7 cm
0.7 cm
487420
36107
50
54 mm
15 °
4.4 cm
0.9 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (1)
For cooling and heating water with antifreeze agent
–30 °C to +120 °C
16 bar / 1600 kPa (1)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (1)
For saturated steam ≤ 120 °C
0–120 °C
2 bar/200 kPa (1)
For service water and process water
0–100 °C
16 bar / 1600 kPa (5)
For treated water
0–100 °C
16 bar / 1600 kPa (6)
For rainwater with a pH value of > 6.0
0–100 °C
16 bar / 1600 kPa
For grey and black water with pH value > 6.0
0–100 °C
16 bar / 1600 kPa
For extinguishing water (wet)
0–100 °C
16 bar / 1600 kPa
For sprinklers (wet)
0–100 °C
16 / 10 bar 1600 / 1000 kPa
For chemicals and technical liquids
Upon request
Upon request (5)
(1) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(2) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(3) 10 bar / 1000 kPa for MasterFix and MeplaFix
(4) 16 bar / 1600 kPa for d22–76.1 mm, 10 bar / 1000 kPa for d88.9–108 mm
(5) Following Geberit approval
(6) Application range according to TI "Treated Waters"
Application Purposes
Operating Temperature
Maximum Operating Pressure
For Compressed Air (Oil Purity Class 0-3)
0-100°C
25/16/12 bar
2500/1600/1200 kPa (5)
(5) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
