Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Material: Gunmetal (CuSn5Zn5Pb2-C) with brass union nut
Seal Ring: CIIR black seal ring, flat EPDM gasket
Media Temperature: 0°C to 100°C with EPDM gasket
Connection Technology: Press-fit with pressing indicator
Leak Detection: Leaky if unpressed
Installation: Suitable for surface-mounted and concealed installations
Type Of Pressing Profile: M
Description

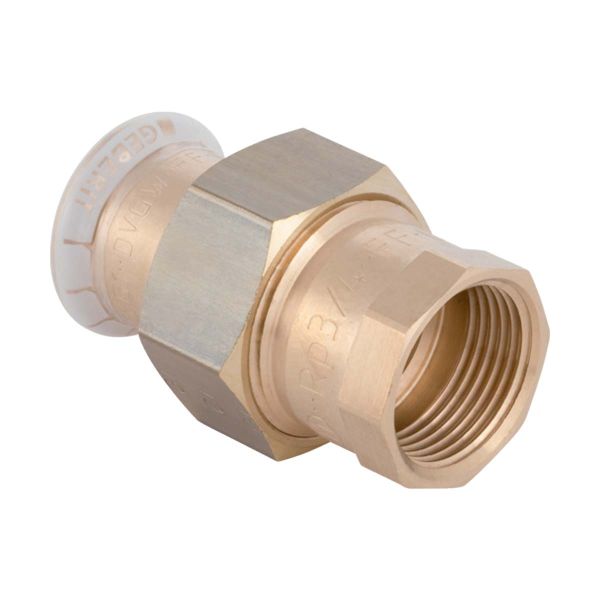

The Geberit Mapress Copper Female Threaded Union is designed to connect copper piping systems to threaded components such as valves or fittings with a female thread. This union ensures a secure, leak-proof joint and allows for easy disassembly, making it ideal for systems requiring frequent maintenance or replacement of components. It is particularly suitable for use in potable water installations, as well as heating and cooling circuits.
Key Features
Durable Gunmetal Construction: Made from high-quality gunmetal (CuSn5Zn5Pb2-C), this union offers excellent resistance to corrosion, ensuring long-term durability in potable water, heating, and cooling systems.
Brass Union Nut: The union nut is made of brass, providing a robust and secure mechanical connection between the press-fit socket and the threaded component, ensuring a strong and reliable joint.
Leak Detection: The fitting is designed to be leaky if unpressed, allowing installers to easily identify any unpressed connections during installation, ensuring a proper and secure fit.
Reliable Seals: The CIIR black seal ring offers a secure, leak-proof connection, while the flat EPDM gasket provides additional sealing for applications involving media temperatures between 0°C and 100°C, making the union suitable for a range of thermal applications.
Press-Fit Technology: The press-fit connection eliminates the need for welding or soldering, ensuring a fast, safe, and efficient installation while reducing the risk of fire hazards, especially in sensitive areas such as residential buildings.
Clear Identification: Equipped with pressing indicators and transparent protection plugs, the union allows for easy visual confirmation of correct installation and helps to distinguish between different materials, reducing errors during installation.
Versatile Application: The Geberit Mapress Copper Female Threaded Union is suitable for surface-mounted or concealed installations, making it ideal for a wide range of plumbing applications, including new installations, renovations, and system maintenance.
SKU
Art. no.
DN
d, ø
Rp
G
L
Z
486781
65482
12 / 15
15 mm
1/2 ′′
3/4 ′′
5 cm
1.7 cm
486789
65483
15
18 mm
1/2 ′′
3/4 ′′
5 cm
1.7 cm
486784
65484
20
22 mm
3/4 ′′
1 ′′
6.2 cm
2.6 cm
486785
65485
25
28 mm
1 ′′
1 1/4 ′′
6.3 cm
2.3 cm
486786
65486
32
35 mm
1 1/4 ′′
1 1/2 ′′
7.5 cm
3 cm
486787
65487
40
42 mm
1 1/2 ′′
1 3/4 ′′
7.9 cm
3 cm
486788
65488
50
54 mm
2 ′′
2 3/8 ′′
8.5 cm
2.7 cm
486782
65490
12 / 20
15 mm
3/4 ′′
3/4 ′′
5.9 cm
2.4 cm
486790
65491
15 / 20
18 mm
3/4 ′′
3/4 ′′
5.9 cm
2.4 cm
486783
65492
20 / 25
22 mm
1 ′′
1 ′′
6.6 cm
2.8 cm
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
