Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Material: Gunmetal (CuSn5Zn5Pb2-C)
Seal Ring: CIIR black seal ring
Connection Technology: Press-fit with pressing indicator
Leak Detection: Leaky if unpressed
Installation: Suitable for surface-mounted and concealed systems
Type Of Pressing Profile: M
Description

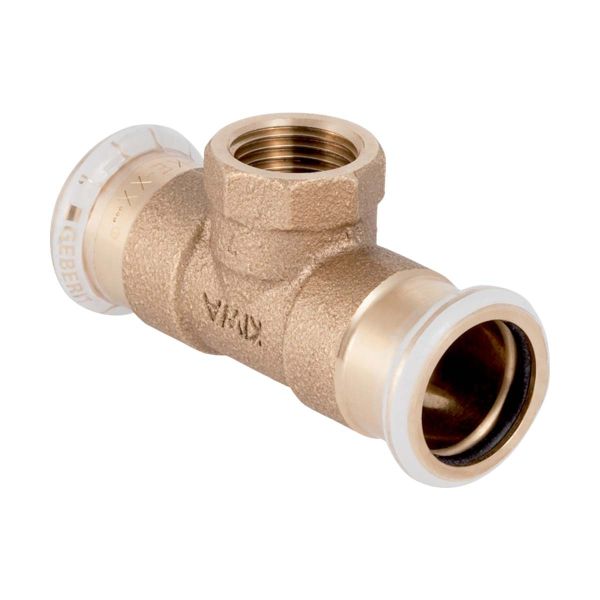

The Geberit Mapress Copper Female Threaded Tee is designed to create a secure and durable connection between copper pipes and a threaded component, such as valves or fittings, in a T-shaped configuration. It allows for efficient branching of copper piping systems with one female threaded outlet, making it ideal for installations where connections to threaded components are necessary. Suitable for potable water, heating, and cooling circuits, this tee provides a reliable and leak-proof connection using press-fit technology.
Key Features
High-Quality Gunmetal Construction: Made from gunmetal (CuSn5Zn5Pb2-C), the female threaded tee is resistant to corrosion, ensuring long-term durability in potable water, heating, and cooling applications.
Leak Detection: Designed to be leaky if unpressed, the tee allows installers to easily identify any missed pressings, ensuring all connections are properly secured during installation.
Secure Sealing: Equipped with a CIIR black seal ring, the tee ensures a secure, leak-proof connection, offering high performance in demanding applications, including potable water systems.
Press-Fit Technology: The press-fit system eliminates the need for hot works, such as welding or soldering, providing a fast, safe, and efficient installation. This not only reduces labour costs but also minimises fire hazards, making it ideal for residential and commercial environments.
Threaded Female Outlet: The female threaded tee allows for easy and secure connections to threaded components such as valves, meters, or other fittings, offering flexibility in plumbing configurations.
Clear Identification: Featuring pressing indicators and transparent protection plugs, the fitting allows for easy visual confirmation of proper installation and ensures clear differentiation between components to avoid confusion.
Versatile Applications: Suitable for both surface-mounted and concealed installations, the tee is ideal for use in a wide range of plumbing systems, including new installations, renovations, and system upgrades.
SKU
Art. no.
DN
d, ø (mm)
Rp (inches)
d1, ø (mm)
arc (degrees)
L (cm)
L1 (cm)
l (cm)
l2 (cm)
Z (cm)
Z1 (cm)
Z2 (cm)
486772
61354
12 / 15
15
1/2
15
90
6.8
2.6
3.4
3.4
1.4
1.3
1.4
486780
61355
15
18
1/2
18
90
8.2
2.4
4.1
4.1
2.1
1.1
2.1
486773
61357
20 / 15
22
1/2
22
90
8.4
2.6
4.2
4.2
2.1
1.3
2.1
486775
61359
25 / 15
28
1/2
28
90
8.8
2.9
4.4
4.4
2.1
1.6
2.1
486776
61360
25 / 20
28
3/4
28
90
8.4
3.5
4.2
4.2
1.9
2
1.9
486777
61362
32 / 15
35
1/2
35
90
10
3.5
5
5
2.4
2.2
2.4
486778
61366
40 / 15
42
1/2
42
90
11.4
3.8
5.7
5.7
2.7
2.5
2.7
486779
61370
50 / 15
54
1/2
54
90
13.8
4.4
6.9
6.9
3.4
3.1
3.4
486774
61395
20
22
3/4
22
90
9
2.7
4.5
4.5
2.4
1.2
2.4
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
