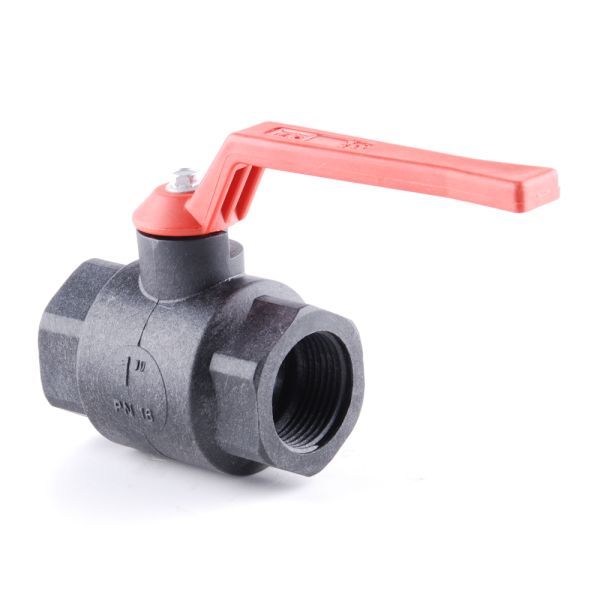

Polypropylene PP Ball Valve Threaded
Useful Information
Technical Specification
- Sizes Available: 3/8" - 1 1/2"
- Body Material: Polypropylene
- Handle Material: Nylon PA6
- Ball Material: Brass
- Thread Type: Female BSP
- Pressure Rating: 16 bar
- Operating Temperature: 0°C to 75°C
- Weather Resistance: UV and atmospheric agent resistant
Description
This polypropylene ball valve features a durable single-body design with female BSP threads, offering reliable shut-off for water conveyance and irrigation systems. With brass internals and nylon handle, it delivers long-lasting performance, excellent sealing, and mechanical resistance in demanding environments.
Key Features & Benefits
- Leak-Proof Construction: Single-body design prevents internal leak-through for enhanced reliability.
- Durable Performance: Brass ball and nylon handle provide smooth operation and robust sealing.
- Excellent Compatibility: Well-suited to plastic piping systems in irrigation and water transport.
- UV Resistant: Withstands exposure to sunlight and outdoor conditions.
- Ideal for Irrigation Systems: Performs reliably in agricultural and horticultural environments.
| SKU | Product Code | Diameter (inch) | L (mm) | H (mm) | A (mm) | B (mm) | C (mm) |
| 359205 | F2200L010.247 | 3/8 | 80 | 46 | 10 | 14 | 52 |
| 359206 | F2200L015.247 | 1/2 | 100 | 55 | 15 | 15.5 | 61 |
| 359207 | F2200L020.247 | 3/4 | 100 | 59 | 20 | 17.5 | 71.5 |
| 359208 | F2200L025.247 | 1 | 120 | 70 | 25 | 20 | 83 |
| 359209 | F2200L032.247 | 1 1/4 | 120 | 76 | 32 | 23 | 98 |
| 359210 | F2200L040.247 | 1 1/2 | 150 | 98 | 40 | 23 | 107 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
