Riser

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Material: polypropylene
  • BSP threaded
  • Colour: black
  • Pressure rated to PN10 (10 bar) at 20°C
  • Conforms to UNI EN 10226-1, UNI EN 10226-2, ANSI/ASME B1.20.1

Useful Info:

threaded-riser

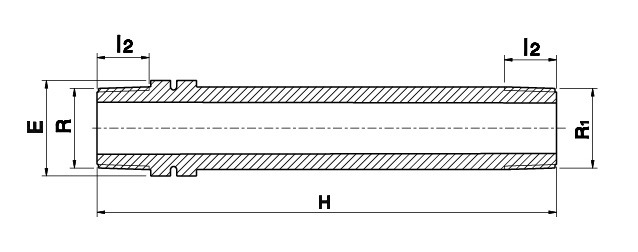

Product Code A B C D H
351935 1/2" 1/2" 22mm 17mm 150mm
351936 3/4" 1/2" 27mm 18mm 150mm
351937 3/4" 3/4" 27mm 18mm 150mm
351938 1" 1" 36mm 19mm 150mm
351939 1 1/4" 1 1/4" 46mm 21mm 150mm
351940 1 1/2" 1 1/4" 50mm 21mm 150mm
351941 1 1/2" 1 1/2" 50mm 21mm 150mm

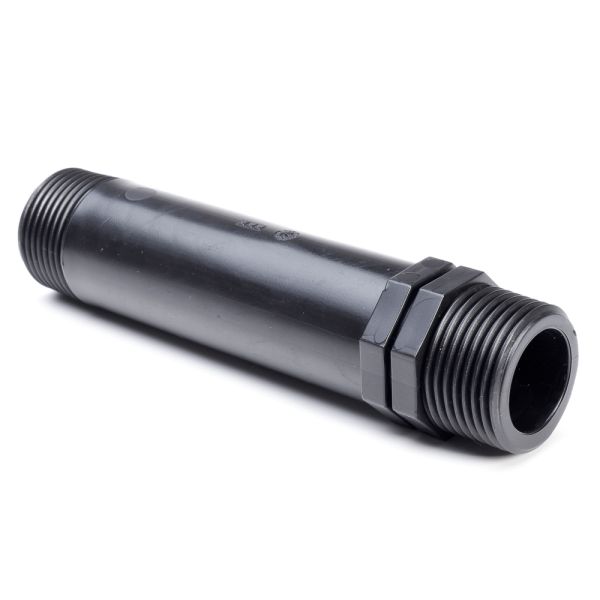

These risers are male threaded at both ends and are used for the extension of pipework in a vertical position.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
351935PL PP Riser 150mm Long Male BSP Thread 1/2" x 1/2" £3.10 40% £1.86
351936PL PP Riser 150mm Long Male BSP Thread 3/4" x 1/2" £4.09 40% £2.45
351937PL PP Riser 150mm Long Male BSP Thread 3/4" x 3/4" £4.09 40% £2.45
351938PL PP Riser 150mm Long Male BSP Thread 1" x 1" £6.63 40% £3.98
351939PL PP Riser 150mm Long Male BSP Thread 1 1/4" x 1 1/4" £6.94 40% £4.16
351940PL PP Riser 150mm Long Male BSP Thread 1 1/2" x 1 1/4" £7.52 40% £4.51
351941PL PP Riser 150mm Long Male BSP Thread 1 1/2" x 1 1/2" £7.52 40% £4.51
