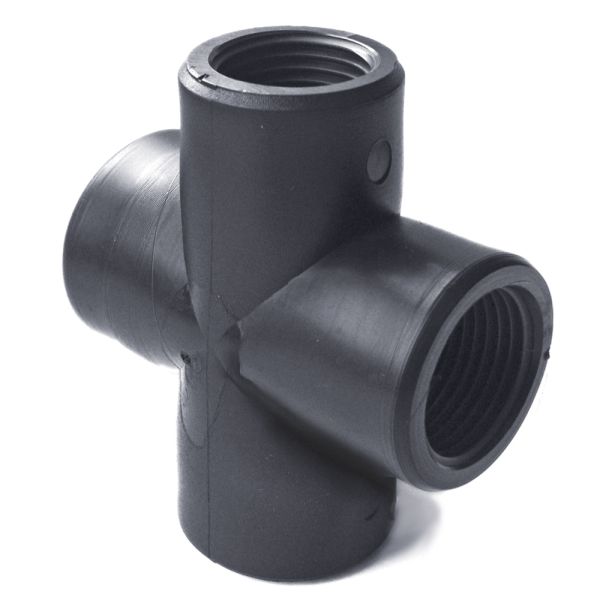

Polypropylene Threaded Cross
Useful Information
Technical Specification
- Sizes Available: 3/4" - 1 1/2"
- Material: Polypropylene
- Thread Type: BSP female (4-way)
- Colour: Black
- Pressure Rating:
- – PN10 (10 bar) up to 3" at 20°C
- – PN6 (6 bar) up to 4" at 20°C
- Standards: UNI EN 10226-1, UNI EN 10226-2, ANSI/ASME B1.20.1
- Function: Connects four male-threaded pipes of equal size at 90° angles
Description
This polypropylene threaded cross fitting features four equal BSP female threads, designed for connecting four male-threaded MDPE pipes at right angles. It is a practical solution for creating branch points in fluid systems, enabling an even and secure four-way distribution in low- to medium-pressure applications such as water systems and light industrial use.
Key Features & Benefits
- Four-Way Connectivity: Simplifies complex pipe layouts with centralised flow distribution.
- Durable Polypropylene Construction: Offers corrosion and chemical resistance for extended service life.
- Precision BSP Threads: Ensures tight, leak-free joints compatible with industry-standard fittings.
- Reliable Performance: Rated for medium-pressure systems up to 10 bar.
- Versatile Use: Ideal for water transfer, irrigation, and low-pressure fluid handling networks.
| SKU | Product Code | A | D | H | L |
| 350277 | 14063-B | 1/2" | 28mm | 18mm | 18mm |
| 350278 | 14063-C | 3/4" | 35mm | 19.5mm | 19.5mm |
| 350279 | 14063-F | 1 1/2" | 59.5mm | 27mm | 100mm |
| 350280 | 14063-M | 4" | 135.5mm | 35.5mm | 259mm |
