Available Sizes: 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
Pressure Rating: 16 bar
Manufacturer: Plastica Alfa
Application: Flow regulation in MDPE water systems
Installation: Quick and simple; pipe liners recommended
Description

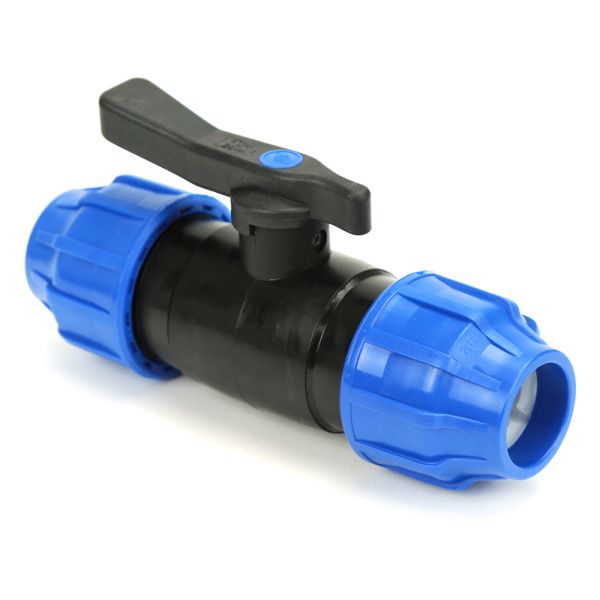

These MDPE ball valves, manufactured by Plastica Alfa, are built for regulating flow in MDPE pipe systems and are suitable for a range of water supply applications. Designed with compression fittings at both ends, they offer a quick and secure installation process. The valve body is constructed from tough polypropylene with NBR O-rings for reliable sealing under pressure. Rated to 16 bar and available in sizes from 20mm to 63mm, they provide a durable and efficient shut-off solution. For optimal performance and joint integrity, the use of pipe liners is strongly recommended.
Key Features & Benefits
Compression End Connections: Easy to install with no specialist tools required.
Robust Construction: Polypropylene body for high strength and chemical resistance.
High Pressure Rating: Operates up to 16 bar, suitable for pressurised MDPE systems.
Reliable Seal: NBR O-rings provide long-lasting leak protection.
Versatile Sizing: Available in sizes from 20mm to 63mm to suit various system demands.
Manufacturer: Produced by Plastica Alfa, a trusted name in pipe fittings.
Use with Pipe Liners:Pipe liners are strongly recommended for a secure, rigid joint.
SKU
Supplier Code
Size (mm)
L (mm)
L1 (mm)
M (mm)
H (mm)
H1 (mm)
350724
18VCBB-2
20
156
68.5
85
51.5
48
350725
18VCBB-3
25
170
78
108
58
54
350726
18VCBB-4
32
200
92.5
108
70
63
350727
18VCBB-6
40
229
101
108
75
77
350728
18VCBB-7
50
251
117
150
101
91
350729
18VCBB-8
63
300
136
150
106
106
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
