Plug
Useful Information
Technical Specification
- Material: Polypropylene
- Colour: Black
- Connection Type: BSP male threaded
- Pressure Rating: PN10 (up to 3"), PN6 (up to 4") at 20°C
- Standards: UNI EN 10226-1, UNI EN 10226-2, ANSI/ASME B1.20.1
- Application: Sealing BSP female threaded pipe or fitting ends
Description

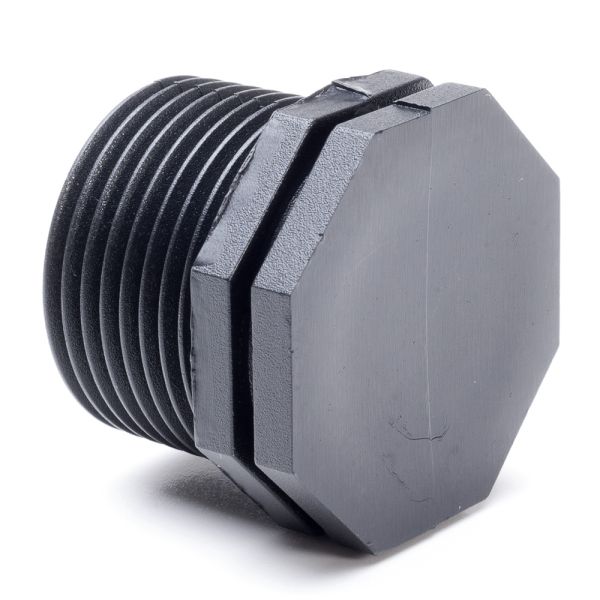

This polypropylene plug is designed to seal the end of a BSP female threaded fitting or pipe, providing a secure and chemical-resistant closure. Ideal for use in water supply and industrial systems, it prevents leakage and contamination when terminating a line. Manufactured in black polypropylene, the plug is pressure rated to PN10 up to 3" and PN6 up to 4" at 20°C, and complies with major international thread standards for reliable, leak-free performance.
Key Features & Benefits
- Secure Termination: Closes off BSP female threaded connections to prevent flow or contamination.
- Durable Polypropylene: Chemically resistant and corrosion-proof for long service life.
- Standard BSP Threaded: Compatible with a wide range of female BSP fittings and pipes.
- Pressure Rated: PN10 to 3", PN6 to 4" at 20°C for effective sealing under pressure.
- Compliant Design: Conforms to UNI EN 10226-1, UNI EN 10226-2, and ANSI/ASME B1.20.1.
- UV-Resistant Finish: Black colour suitable for exposed or outdoor installations.
| SKU | Supplier Code | A | Z | L |
| 350390 | 16010-B | 1/2" | 7.5mm | 17.5mm |
| 350391 | 16010-C | 3/4" | 9.5mm | 19mm |
| 350392 | 16010-D | 1" | 10.5mm | 22mm |
| 350393 | 16010-E | 1 1/4" | 10.5mm | 24.5mm |
| 350394 | 16010-F | 1 1/2" | 10.5mm | 24.5mm |
| 350395 | 16010-G | 2" | 15.5mm | 25.5mm |
| 350396 | 16010-H | 2 1/2" | 15.5mm | 28.5mm |
| 350397 | 16010-L | 3" | 17.5mm | 31mm |
| 350398 | 16010-M | 4" | 20.5mm | 43mm |
