Nipple
Useful Information
Technical Specification
- Material: Polypropylene
- Colour: Black
- Connection Type: BSP male threaded
- Pressure Rating: PN10 (up to 3"), PN6 (up to 4") at 20°C
- Standards: UNI EN 10226-1, UNI EN 10226-2, ANSI/ASME B1.20.1
- Application: Connecting two BSP female threaded fittings of the same size
Description

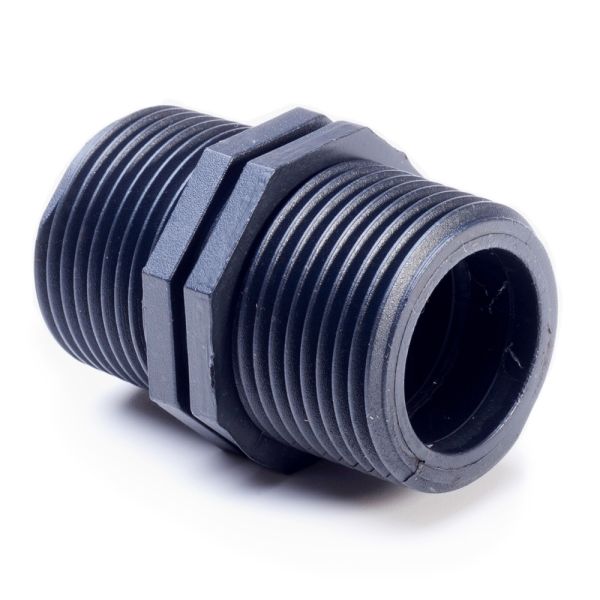

This polypropylene nipple provides a secure means of connecting two BSP female threaded fittings of the same size. Precision-moulded in black polypropylene, it offers excellent resistance to chemicals and corrosion, making it suitable for water systems and general industrial use. Rated for pressures up to PN10 at 20°C (up to 3") and PN6 (up to 4"), it conforms to leading international thread standards for reliable, leak-free connections.
Key Features & Benefits
- Durable Polypropylene Construction: Ensures chemical resistance and long service life.
- BSP Male Threaded: Designed to join two female BSP threaded fittings of identical size.
- Pressure Rated: PN10 rated to 3", PN6 rated to 4" at 20°C for safe operation in pressurised systems.
- Black Colour: UV-stable and suited to outdoor or exposed installations.
- International Compliance: Meets UNI EN 10226-1, UNI EN 10226-2, and ANSI/ASME B1.20.1 standards.
| SKU | Supplier Code | A | B | Z | L |
| 350299 | 15020-B | 1/2 | 1/2" | 10.5mm | 45mm |
| 350300 | 15020-C | 3/4" | 3/4" | 10.5mm | 48.5mm |
| 350301 | 15020-D | 1" | 1" | 10.5mm | 52.5mm |
| 350302 | 15020-E | 1 1/4" | 1 1/4" | 10.5mm | 59mm |
| 350303 | 15020-F | 1 1/2" | 1 1/2" | 10.5mm | 59mm |
| 350304 | 15020-G | 2" | 2" | 15.5mm | 66.5mm |
| 350305 | 15020-H | 2 1/2" | 2 1/2" | 15.5mm | 72.5mm |
| 350306 | 15020-L | 3" | 3" | 17.5mm | 77mm |
| 350307 | 15020-M | 4" | 4" | 20mm | 105.5mm |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
