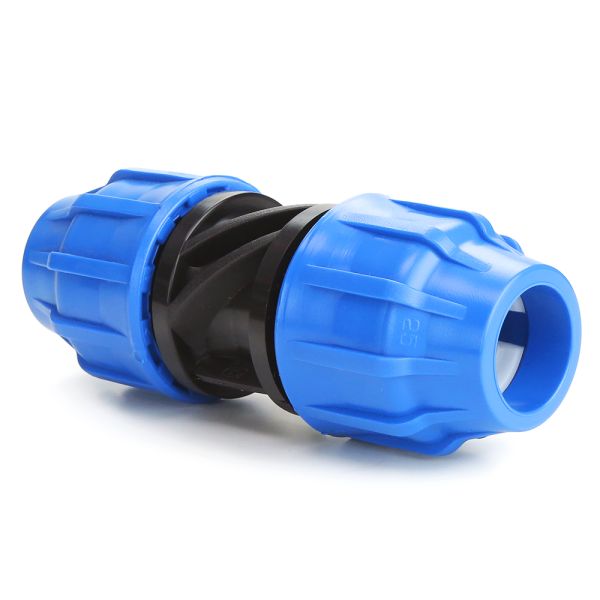

Repair Coupling

Useful Information

Our compression repair coupling fittings are available in sizes from 20mm to 110mm.

Pipe repair couplings are used to join two lengths of MDPE pipe together where a repair is necessary. These couplings require the pipes to be the same diameter.

These repair couplings differ from standard couplings due to their lack of internal pipe stop.

These pipe couplings are manufactured from polypropylene and are simple to install, providing a strong compression fitting joint.

To maintain a rigid and reliable joint connection, it is highly advised that pipe liners (also known as stiffeners or inserts) are also used.

mdpe-repair-coupling-diagram



Product Code d (mm) D (mm) L (mm)
402995 20 47 125
402996 25 54 137
402997 32 65 175.5
402998 40 76 216.5
402999 50 91.5 244
403000 63 110.5 255
403001 75 127.5 284
403002 90 150 344
403003 110 176.5 410.5



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
402995MDPE Repair Coupling 20mm £6.13 60% £2.45
402996MDPE Repair Coupling 25mm £7.27 60% £2.91
402997MDPE Repair Coupling 32mm £9.33 60% £3.73
402998MDPE Repair Coupling 40mm £15.17 60% £6.07
402999MDPE Repair Coupling 50mm £20.76 60% £8.30
403000MDPE Repair Coupling 63mm £28.95 60% £11.58
403001MDPE Repair Coupling 75mm £54.20 60% £21.68
403002MDPE Repair Coupling 90mm £78.51 60% £31.40
403003MDPE Repair Coupling 110mm £143.12 60% £57.25
