Thread Type: BSPP (British Standard Pipe Parallel)
Maximum Pressure: 16 bar
Suitable for: MDPE and HDPE pipe
Standards Compliance: ISO 17885 (for water applications), ISO 7/1, BS 21
Installation: No special tools required – pre-assembled and ready for use
Description
The Plasson Plastic Wall Plate Elbow is a high-quality, ready-to-install fitting designed to connect MDPE or HDPE pipe to a fixed outlet with a BSPP thread, typically at an external wall. Ideal for domestic water supply and irrigation systems, it provides a secure, leak-free connection while offering durability and ease of installation. With no need for specialist tools, this elbow fitting simplifies plumbing tasks and ensures long-term performance in both residential and commercial settings.
Key Features & Benefits
Reliable Brand: Manufactured by Plasson – trusted for precision-engineered fittings
Ready to Use: Supplied pre-assembled – no special tools required
Strong and Lightweight: Made from robust, corrosion-resistant polypropylene
Secure Sealing: NBR O-ring ensures a watertight connection
Threaded Outlet: BSPP thread for standard British plumbing connections
Ideal Applications: Domestic water supply, outdoor taps, irrigation systems, and more

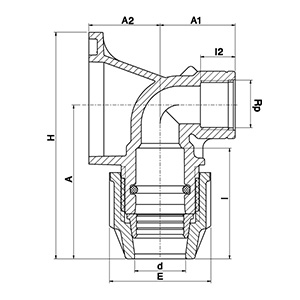

SKU
d (mm)
Rp (")
A (mm)
A1(mm)
A2 (mm)
E (mm)
H (mm)
L (mm)
L2 (mm)
352715
20
1/2
78
40
38
48
110
57
18
352716
25
3/4
81
40
38
54
120
58
19
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
