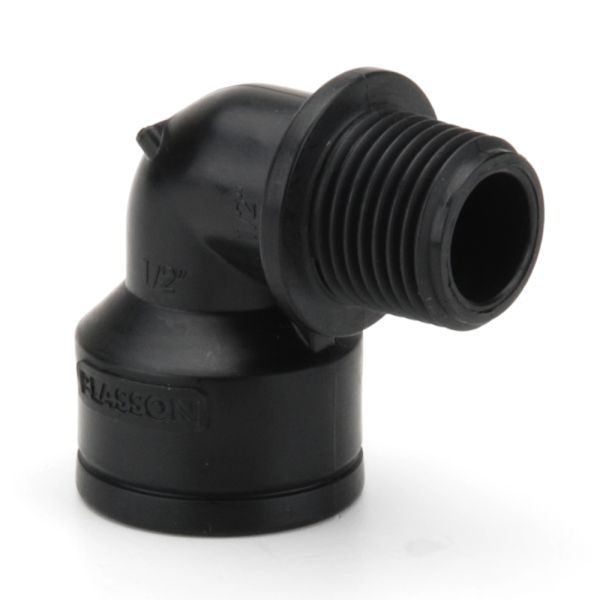

Elbow 90 Male x Female

Elbow 90 Male x Female

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufacturer: Plasson
  • Material: polypropylene
  • BSP threaded
  • Colour: black
  • Pressure rated to PN16 (16 bar)

Useful Info:

male x female threaded-elbow-90


Product Code R (inch) Rp (inch) A (mm) A1 (mm) l (mm) l1 (mm)
351932 1/2 1/2 36 36 16 17
351933 3/4 3/4 40 40 17 18
351934 1 1 45 47 19 21



This socket is used to join a male threaded pipe to a female threaded pipe of the same diameter at an angle of 90°.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
PL PP Elbow 90 Male/Female BSP Thread 1/2"
Code
351932
Product Name
PL PP Elbow 90 Male/Female BSP Thread 1/2"
List Price
£2.82
You Pay
£1.69
You Save
40%
Qty
PL PP Elbow 90 Male/Female BSP Thread 3/4"
Code
351933
Product Name
PL PP Elbow 90 Male/Female BSP Thread 3/4"
List Price
£3.49
You Pay
£2.09
You Save
40%
Qty
PL PP Elbow 90 Male/Female BSP Thread 1"
Code
351934
Product Name
PL PP Elbow 90 Male/Female BSP Thread 1"
List Price
£4.31
You Pay
£2.59
You Save
40%
Qty
3 products
