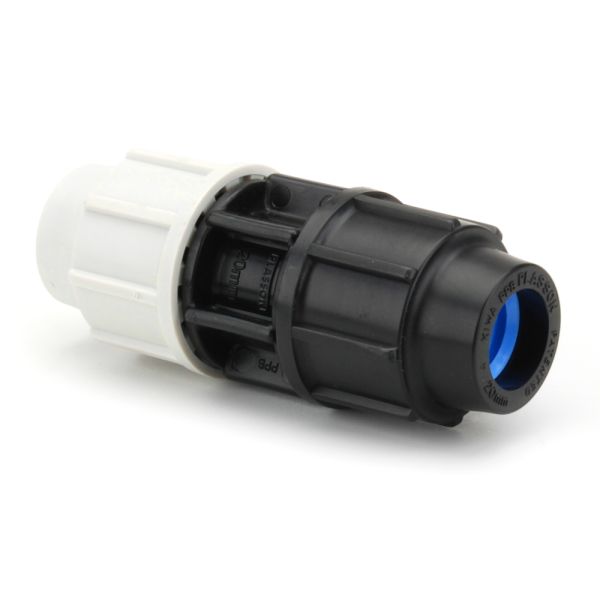

Metric x Heavy Coupling

Metric x Heavy Coupling

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

  • Manufactured by Plasson
  • Pressure rated up to 16 bar
  • Sizes available from 1/2" x 20mm to 1" x 32mm

coupling

Product Code d x d1 H (mm) E (mm) I (mm)
352679 1/2" x 20mm 121 48 58
352681 1/2" x 25mm 125 54 60
352682 3/4" x 25mm 119 54 60
352683 1" x 32mm 145 64 70



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
PL Metric x Heavy Gauge Coupling 20mm x 1/2"
Code
352679
Product Name
PL Metric x Heavy Gauge Coupling 20mm x 1/2"
List Price
£4.46
You Pay
£2.68
You Save
40%
Qty
PL Metric x Heavy Gauge Coupling 25mm x 3/4"
Code
352681
Product Name
PL Metric x Heavy Gauge Coupling 25mm x 3/4"
List Price
£5.15
You Pay
£3.09
You Save
40%
Qty
PL Metric x Heavy Gauge Coupling 25mm x 1/2"
Code
352680
Product Name
PL Metric x Heavy Gauge Coupling 25mm x 1/2"
List Price
£6.81
You Pay
£4.09
You Save
40%
Qty
PL Metric x Heavy Gauge Coupling 32mm x 1"
Code
352682
Product Name
PL Metric x Heavy Gauge Coupling 32mm x 1"
List Price
£9.54
You Pay
£5.72
You Save
40%
Qty
4 products
